Truss section design in AutoCAD 2D drawing, CAD file, dwg file


Description

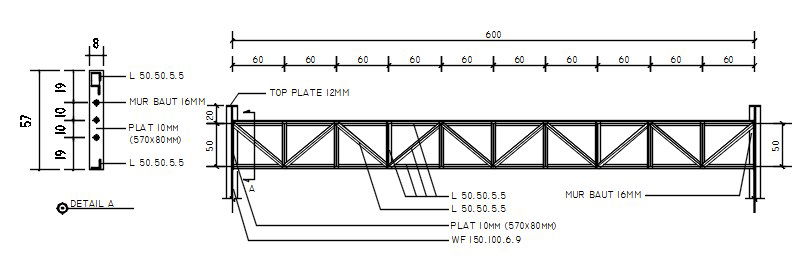

Truss section design in AutoCAD 2D drawing. The length of the truss is 600 given. the top plate size is 12mm and the bottom plate size is 10mm given. The height of the section is 57 given. For more knowledge and detailed information download the 2D AutoCAD dwg file.




File Type: DWG File ID: 263088
