Steel plate section attached with wooden frame by bolted connected design in AutoCAD 2D drawing, CAD file, dwg file

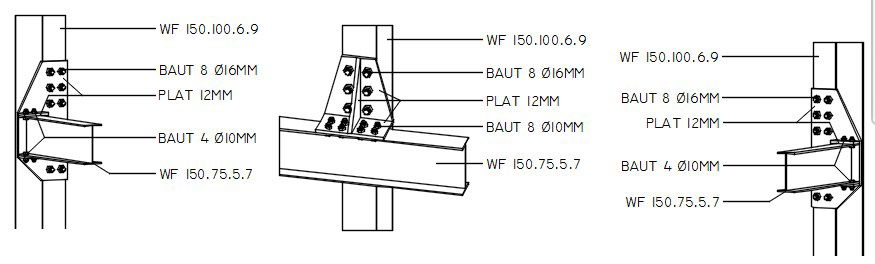

Steel plate section attached with wooden frame by bolted connected design in AutoCAD 2D drawing. wooden frame 150x50x5x7, wooden frame 150x100x6x9, 12mm steel plate, 8 bolts of 10mm diameter, 8 bolts of 16mm diameter, and other details are given in this file. For more knowledge and detailed information download the 2D AutoCAD dwg file.
