Tie beam table 2 design in AutoCAD 2D drawing, CAD file, dwg file

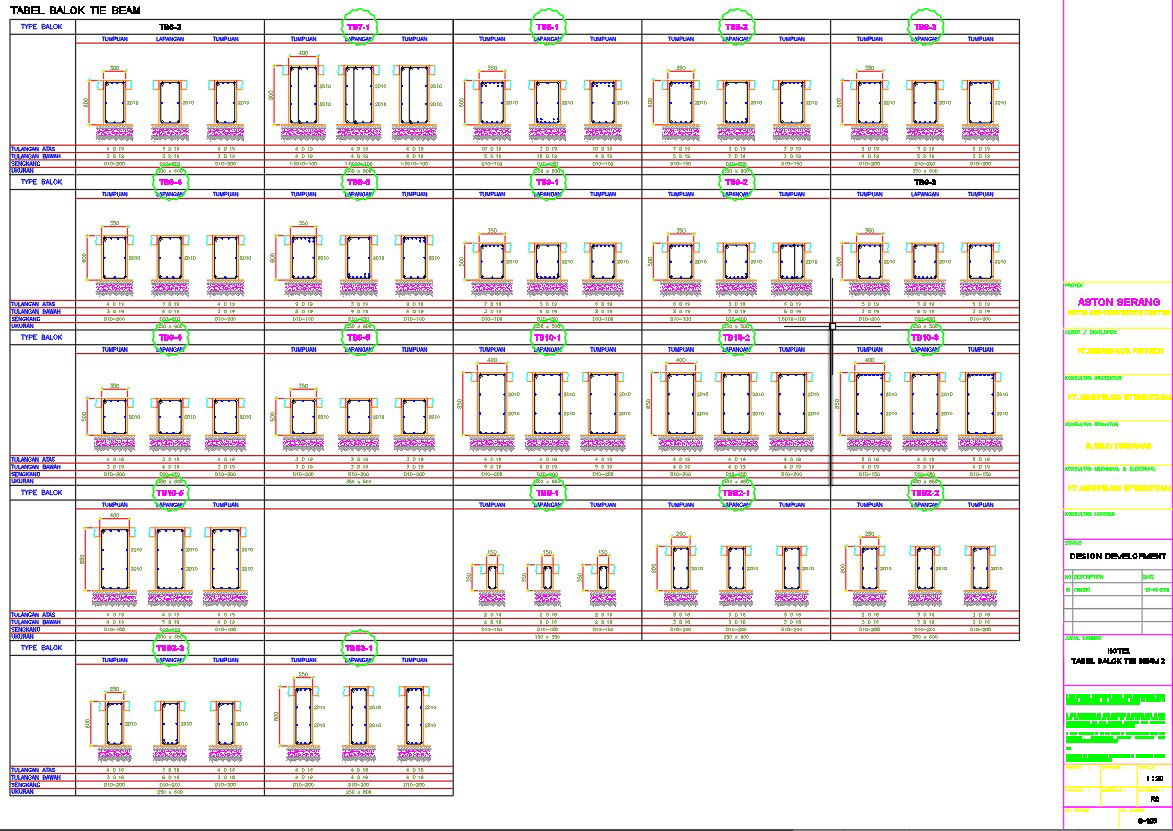

Tie beam table 2 designs are given in AutoCAD 2D drawing. A tie beam is a beam that links two or more columns or rafters in a roof, roof truss, or at any height above the floor to strengthen and balance the overall structure at the foundation level. Tie beams are typically installed at the roof truss, floor level, and plinth. For more knowledge and detailed information download the AutoCAD 2D dwg file.
