Steel Frame Structure AutoCAD 2D Drawing with Roof and Column Details

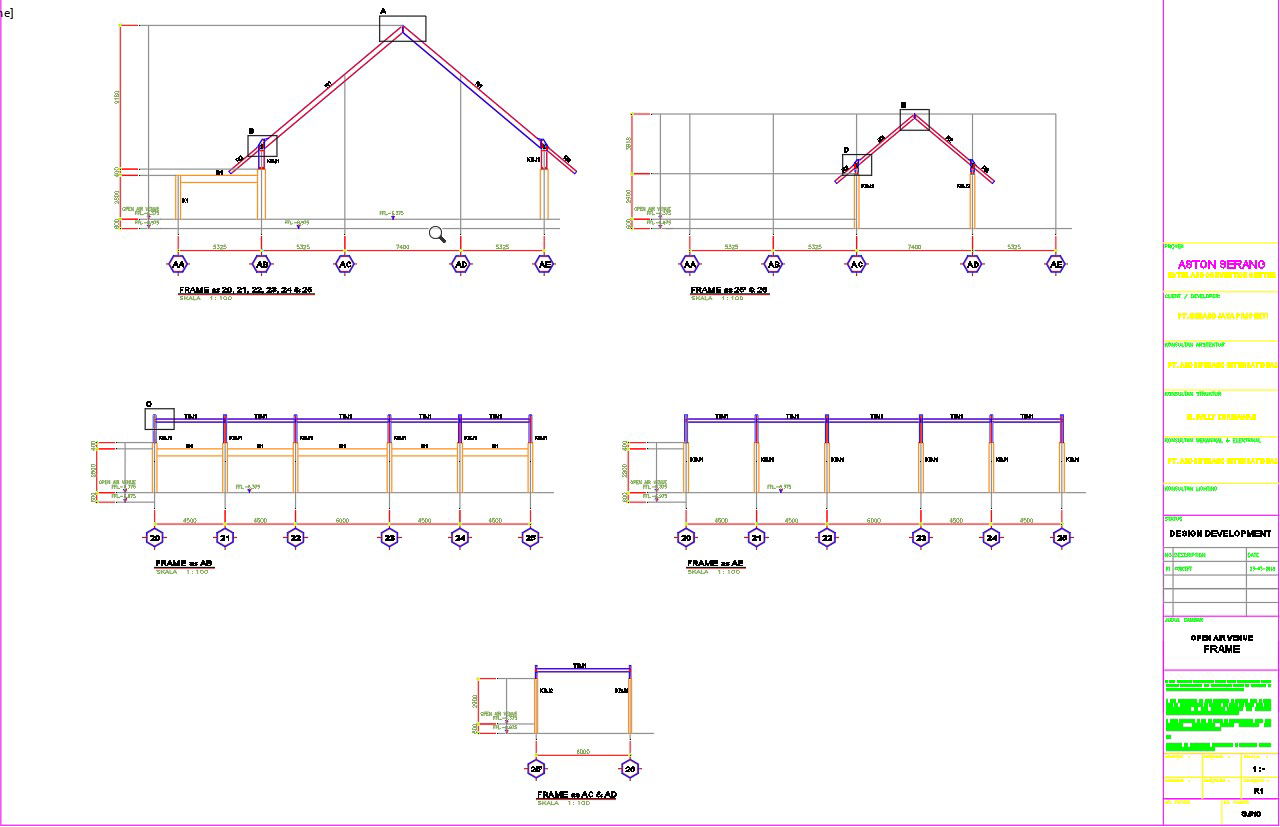

This AutoCAD 2D DWG file presents a detailed steel frame structure design prepared for industrial and commercial building applications. The drawing includes clear roof frame profiles, steel columns, beams, bracing members, and connection points with precise dimensional annotations. Multiple frame elevations and sections are shown to explain structural spacing, column heights, roof slopes, and load-bearing arrangements. The clean drafting style ensures easy understanding for construction detailing, quantity estimation, and coordination with architectural layouts. This steel structure drawing is suitable for warehouses, sheds, workshops, and large-span buildings requiring accurate structural planning.

The steel frame AutoCAD drawing is a valuable reference for architects, civil engineers, and structural designers involved in metal building systems. It supports efficient project execution by providing ready-to-use 2D details compatible with AutoCAD workflows. The file helps streamline structural documentation, improve design clarity, and reduce drafting time while maintaining professional standards. Accessing such high-quality structural DWG files through a Cadbull subscription enhances productivity and ensures reliable design support for steel construction projects across residential, commercial, and industrial developments.
