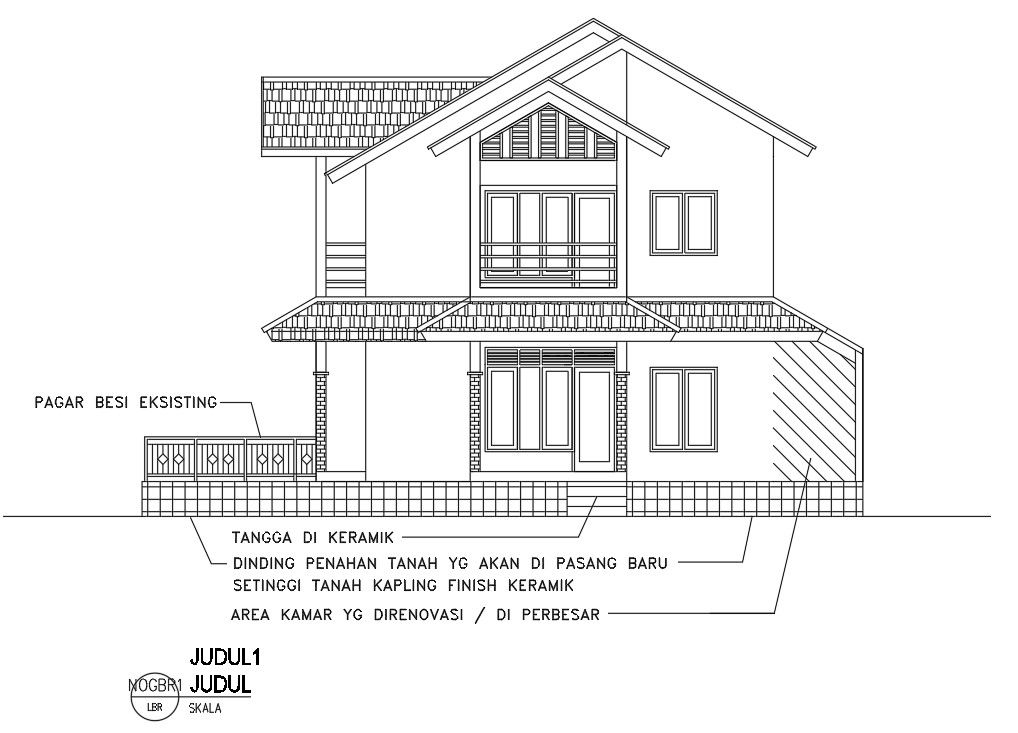

Front elelvation details of a house in AutoCAD, dwg file.


Description

This Architectural Drawing is AutoCAD 2d of Front elevation details of a house in AutoCAD, dwg file. A front elevation is an orthographic projection of an object if it would appear cut vertically by an intersecting plan. A section is drawn similar to a floor plan, but vertically. What is most important in an elevation is the information that is cut through. As a plan, we see wall thicknesses, windows, doors, and openings.




File Type: DWG File ID: 263852
