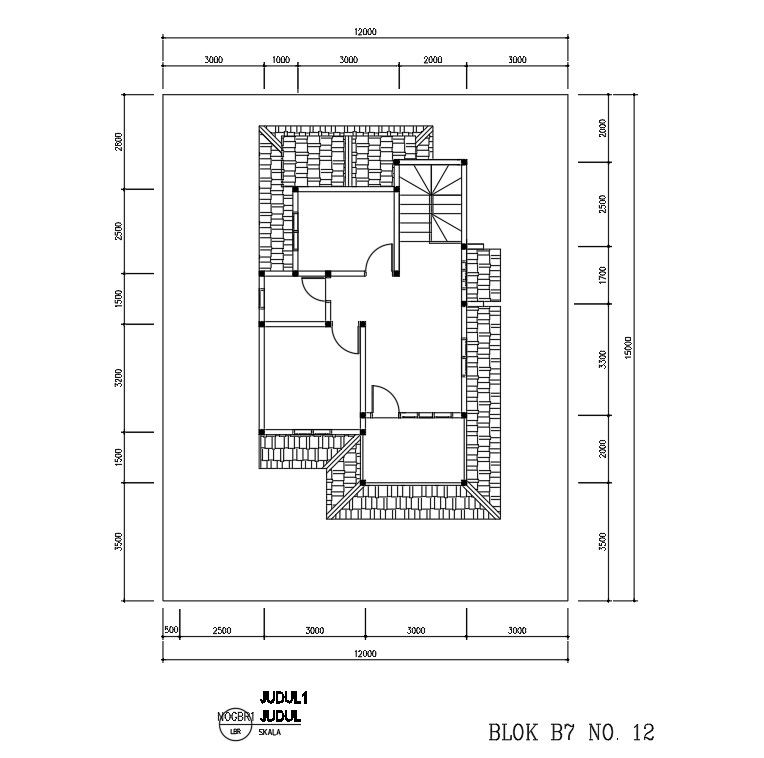

Roof floor plan drawing is given in autocad 2d drawing, dwg file, cad file.


Description

This Architecture Drawing Is an Autocad 2D Drawing of The Roof Plan Drawing in Autocad, Dwg File. It Provides Details Regarding The Roof's Construction, From The Location Of the Drains And Vents To The Dimensions And Placement of The Individual Parts. Any Project Involving Commercial or Residential Roofing Must Include a Roof Plan. For More Knowledge and Detailed Information Download the Cad file.




File Type: DWG File ID: 263857
