Detail of Range Hood Spot with Overhead Cabinet In AutoCAD File

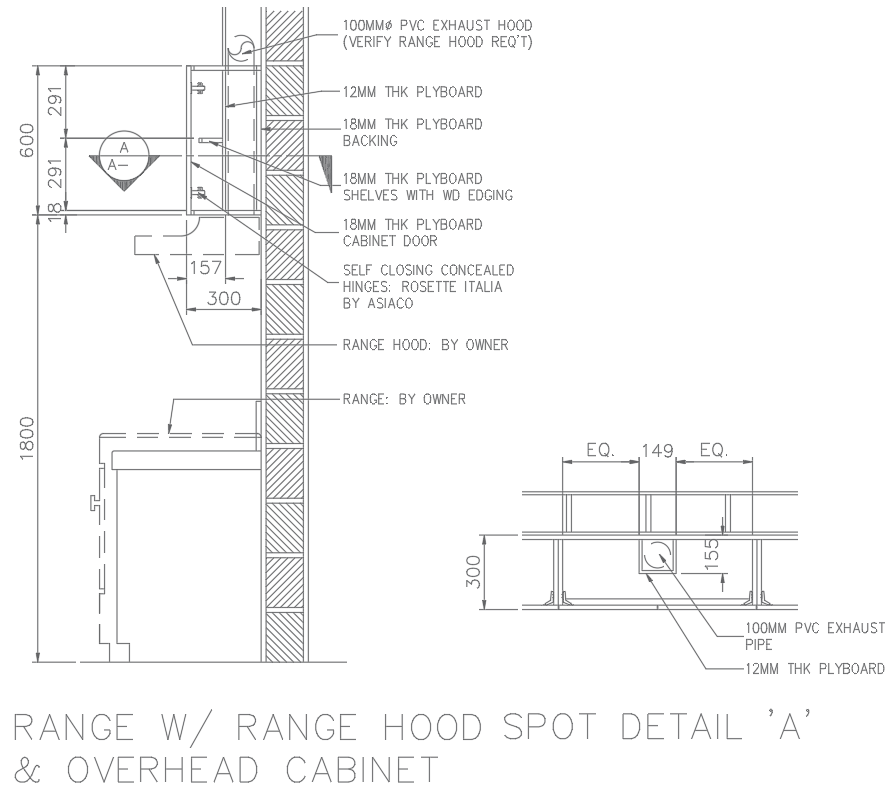

Explore the intricacies of a kitchen setup with this AutoCAD file featuring a detailed drawing of a range hood spot paired with an overhead cabinet. The design includes essential components such as a 100mm PVC exhaust hood, 12mm thick plyboard, and an 18mm thick plyboard cabinet door equipped with self-closing concealed hinges. This CAD drawing provides a comprehensive view of the configuration, allowing for a seamless integration of these elements into your kitchen plans. Download the DWG file to access the precise details for your architectural and design needs, ensuring a well-planned and functional kitchen space.


File Type: DWG File ID: 265079

Uploaded by:

K.H.J Jani
