Moment Splice Detail for Frame Column Drawing In AutoCAD File

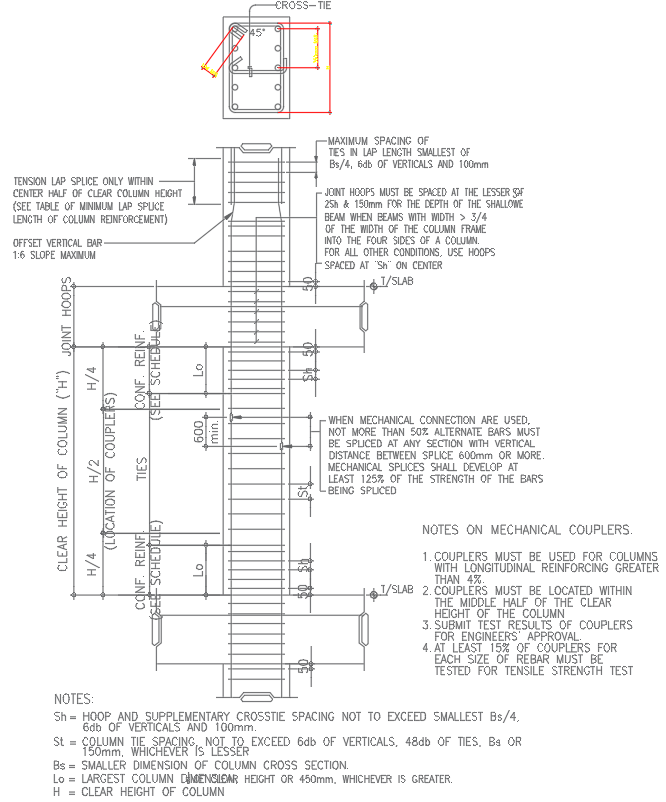

Explore the intricacies of structural design with our user-friendly AutoCAD file showcasing the "Moment Splice Detail for Frame Column." This detailed CAD drawing provides a comprehensive visual guide for understanding the connection points and critical elements involved in reinforcing frame columns with moment splices. Whether you're an architect, engineer, or enthusiast, this DWG file offers a simplified yet thorough depiction of the structural nuances, making it an invaluable resource for anyone working on column-related projects. Enhance your CAD library with this precise drawing, designed to facilitate seamless integration into your design process. Uncover the nuances of moment splice frames effortlessly through our meticulously crafted AutoCAD drawing.
