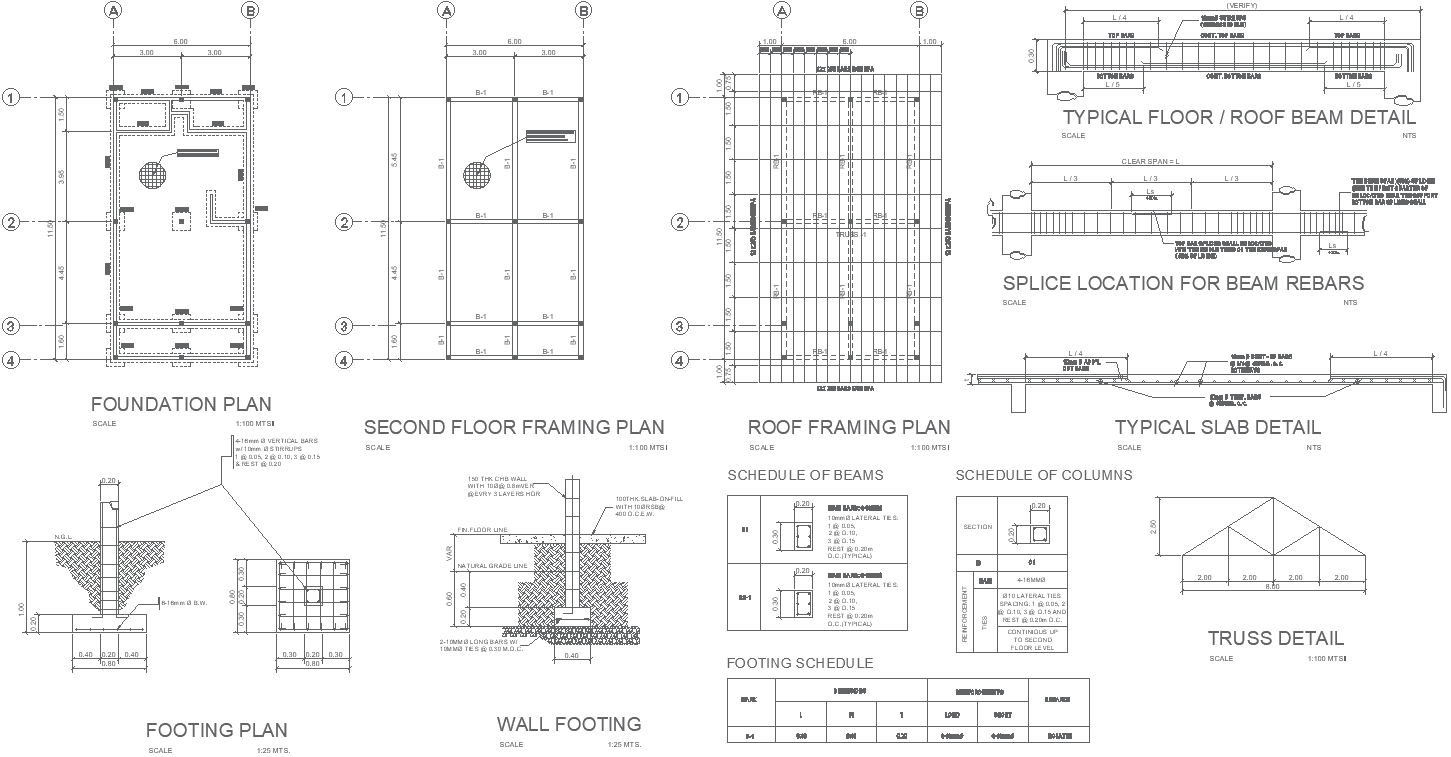

Discover comprehensive structural details for a charming four-bedroom, two-story residential bungalow through an intricately designed DWG file. Delve into the intricacies of the foundation plan, offering a solid base for the entire structure. Ascend to the second floor framing plan, exploring the meticulous framework that shapes the upper level. Uncover the secrets of the roof framing plan, ensuring a sturdy and reliable covering. Dive into the details of the footing plan and wall footing, laying the groundwork for stability. Navigate through the footing schedule, schedule of beams, and schedule of columns, meticulously organized for clarity. Explore truss details, gaining insight into the roof support system. Unveil the typical floor/roof beam detail and splice locations for beam rebars, providing a holistic view of the structural integrity. Conclude the journey with a peek into the typical slab detail, capturing the essence of each level. This invaluable AutoCAD file delivers a wealth of cad drawings, serving as a definitive resource for anyone seeking comprehensive structural details for a residential bungalow.
