Channel Side Plot Division AutoCAD Layout Plan with Road Details

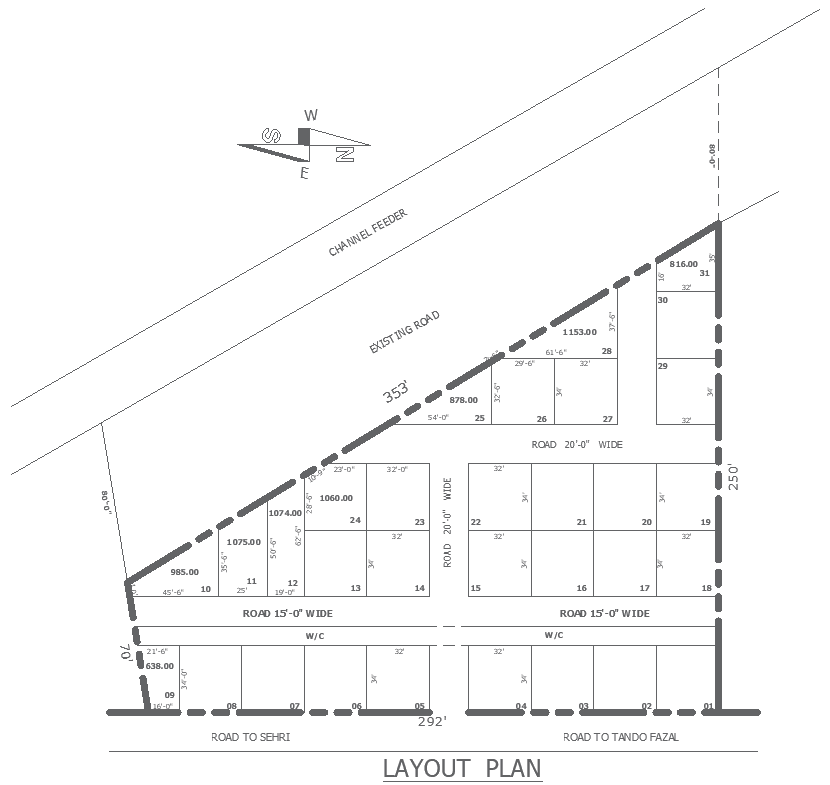

This AutoCAD DWG drawing presents a channel-side plot division layout plan prepared for accurate land planning and site demarcation. The drawing clearly shows the alignment of the channel feeder, existing road connection, and internal access roads with marked widths of 15 ft and 20 ft, ensuring smooth circulation across the site. The boundary length of approximately 353 ft on the channel side and 292 ft along the approach road is clearly dimensioned to support precise land measurement and subdivision work.

The layout includes systematically divided plots with visible plot numbers, frontage dimensions, and depth measurements, making it suitable for residential or institutional land planning. Internal road networks connect the plots efficiently while maintaining proper setbacks from the channel feeder for drainage and safety considerations. The plan also highlights plot orientation in relation to the channel, helping architects and civil engineers evaluate water flow, land usability, and infrastructure coordination.

This AutoCAD plot division drawing is a practical reference for architects, civil engineers, builders, and planners involved in land subdivision, drainage planning, and site feasibility studies. The DWG file supports accurate drafting, area calculation, and development planning.
