Housing Scheme Layout Plan Of 306 Residential Plots With Road Network

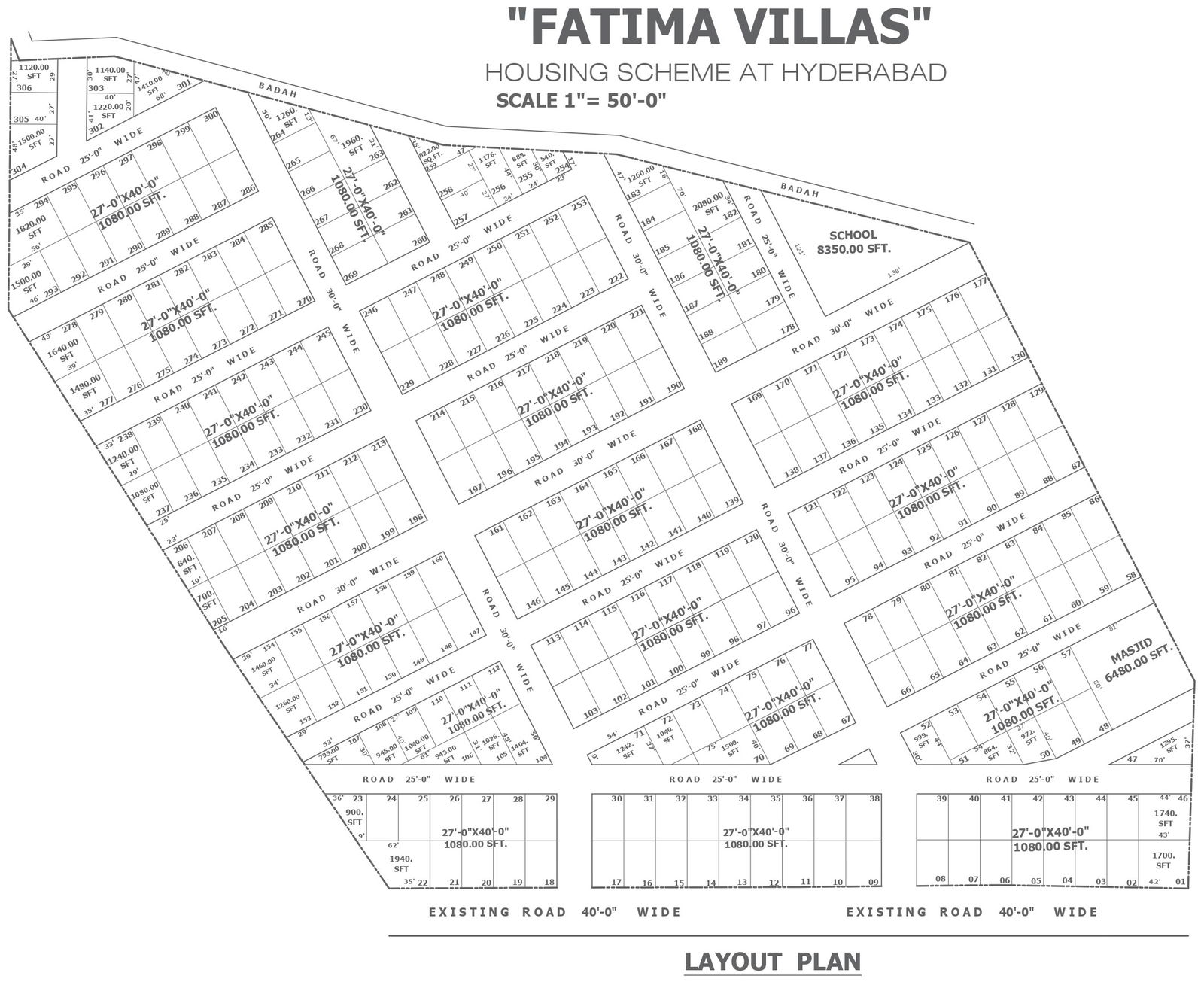

This AutoCAD DWG file presents a detailed housing scheme layout plan comprising 306 residential plots, carefully planned for efficient land utilization and organized urban development. The layout clearly illustrates systematic plot division with standard residential plot sizes of approximately 27 ft x 40 ft, each measuring around 1080 sq ft. Internal road networks of 25 ft and 30 ft widths are well distributed across the scheme, ensuring smooth vehicular circulation and proper access to all plots. Existing 40 ft wide roads are also shown to enhance connectivity with surrounding areas.

The drawing includes designated public amenities such as a school plot of approximately 8350 sq ft and a masjid plot of about 6480 sq ft, strategically positioned for convenient accessibility. Plot numbering, boundary lines, corner plots, and junctions are clearly marked to support site analysis, approval drawings, and development planning. This DWG file is suitable for architects, civil engineers, town planners, and real estate developers seeking an accurate 2D CAD reference for large-scale residential housing projects. The clean drafting style ensures compatibility with AutoCAD and other CAD software for professional planning, coordination, and presentation use.
