City Planning Layout Plan With 1550 To 2750 Sqft Plot Design

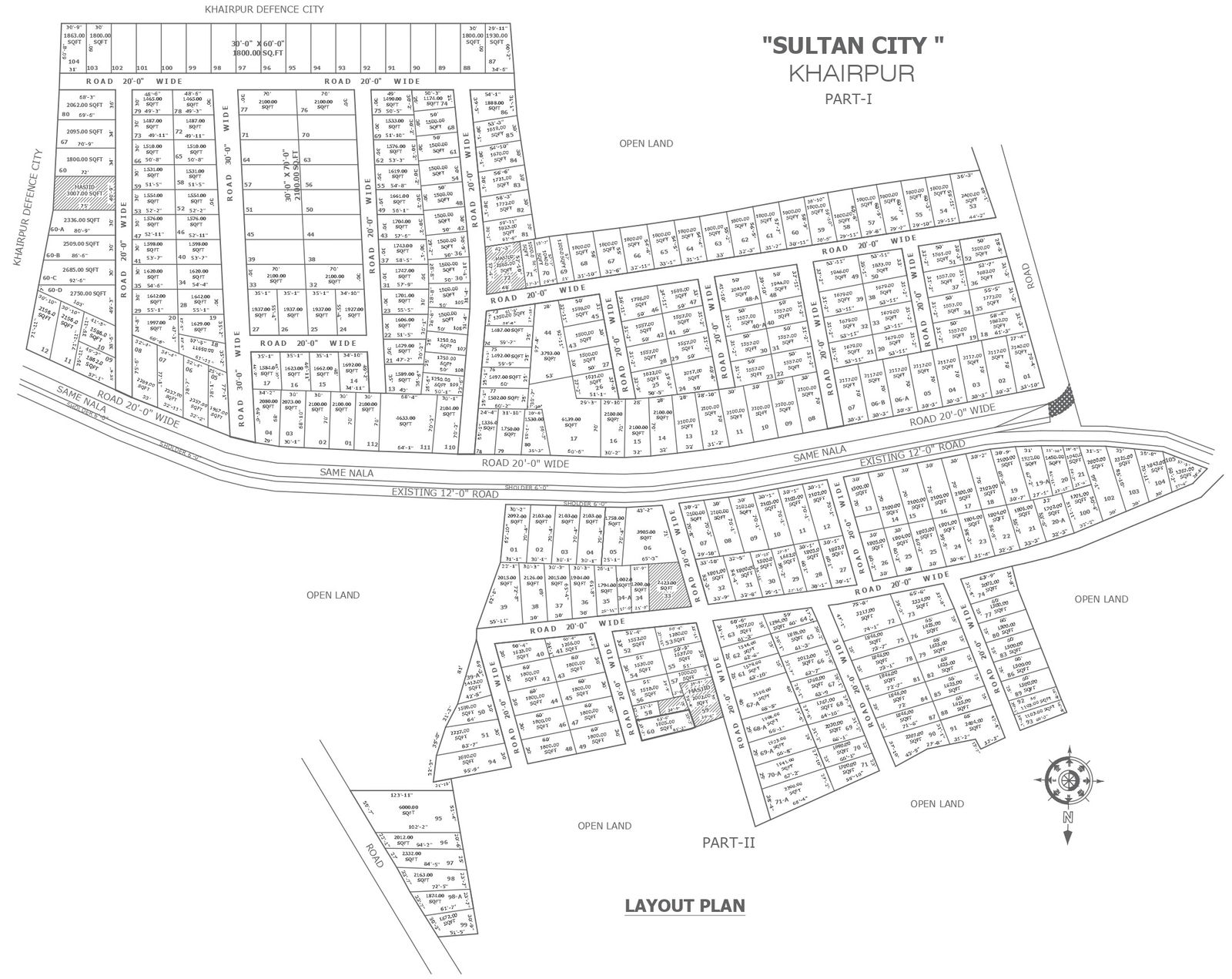

This AutoCAD DWG file presents a comprehensive city planning layout plan featuring residential plot designs ranging from 1550 sqft to 2750 sqft. The layout clearly illustrates organized plot division with precise dimensions, plot numbering, and area labeling to support systematic urban development. Internal road networks with widths of 20 ft and wider connecting roads are well planned to ensure smooth vehicular circulation and proper accessibility throughout the scheme. The drawing also shows alignment with existing roads, drainage channels, and surrounding open land, supporting practical site integration and long-term development planning.

The layout plan includes a mix of medium and large residential plots suitable for independent houses and villa-type developments. Road junctions, corner plots, and irregular plot shapes are carefully arranged to maximize land utilization while maintaining planning efficiency. All plot boundaries, road widths, and site features are clearly marked, making this DWG file suitable for approval drawings, urban planning studies, and residential township development. This AutoCAD drawing is ideal for architects, civil engineers, town planners, and developers seeking an accurate 2D CAD reference for city layout planning, infrastructure coordination, and professional presentation of large-scale residential developments.
