Green City Plot Division Layout Plan Near Channel Feeder In DWG

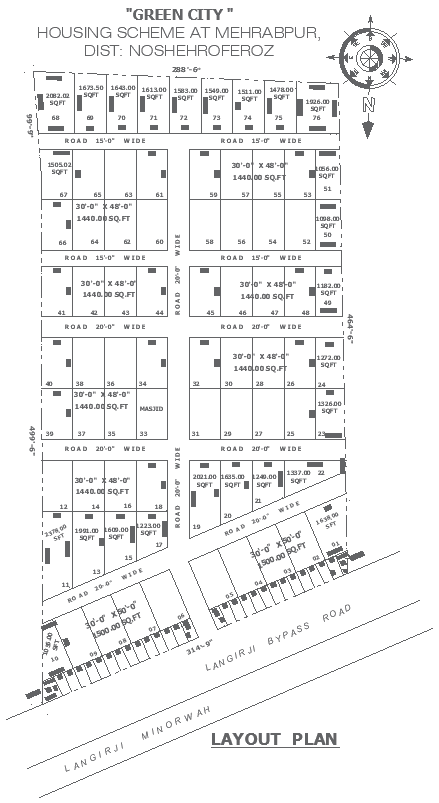

This AutoCAD DWG file presents a detailed plot division layout plan of the Green City housing scheme located at Mehrabpur, near the Langirji Bypass Road and channel feeder area. The layout clearly defines residential plot subdivisions with precise dimensions and area calculations. Standard residential plots measuring approximately 30 ft x 48 ft with an area of about 1440 sq ft are systematically arranged across the site. Smaller plots and irregular corner plots are also shown with accurate area labeling. Internal road networks of 15 ft and 20 ft widths ensure smooth vehicular circulation and proper access to each plot.

The drawing highlights essential planning elements such as designated masjid space, road junctions, boundary lines, and orientation with surrounding roads, including Langirji Minor Wah and bypass connectivity. Plot numbering, setbacks, and clear zoning make the layout suitable for approval drawings, site analysis, and land development planning. This DWG file serves as a reliable reference for architects, civil engineers, town planners, and developers involved in residential plotting projects. The clean 2D drafting style ensures compatibility with AutoCAD and other CAD software, supporting accurate planning, infrastructure coordination, and professional presentation of housing scheme layouts.
