Sofa Set and Chair Furniture Layout Plan Elevation CAD Work File

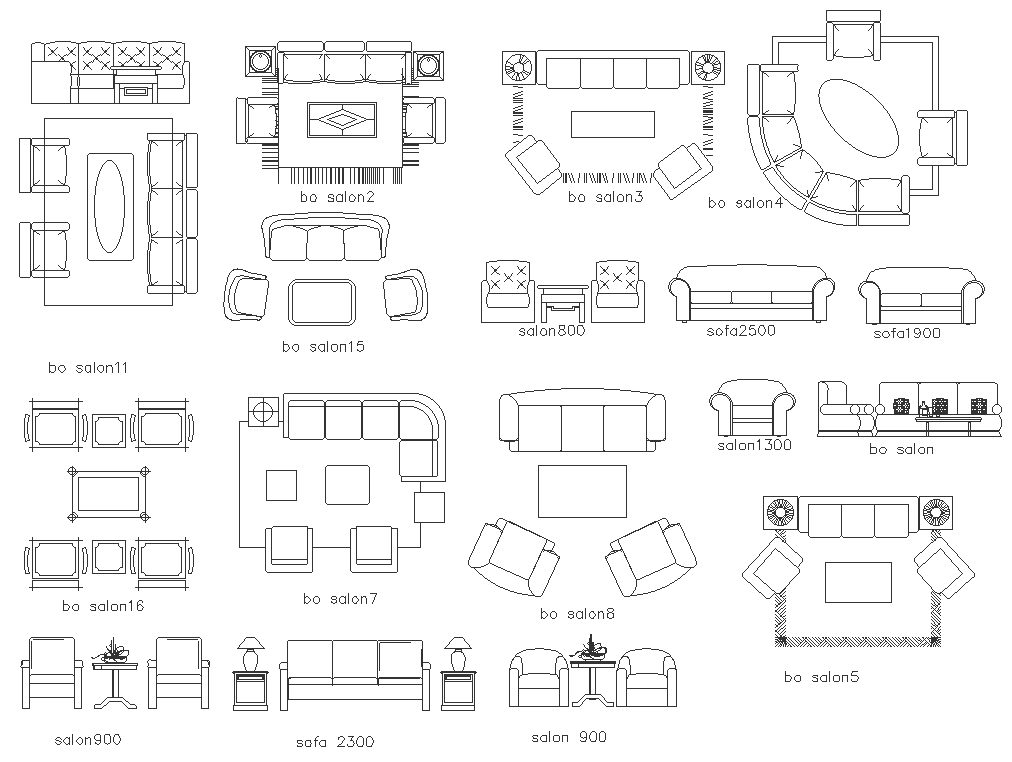

This AutoCAD DWG file presents a detailed sofa set and chair furniture layout with clear plan and elevation views suitable for residential and commercial interior projects. The drawing includes multiple sofa configurations such as straight sofas, L-shaped arrangements, curved seating layouts, and single chair placements. Clearly marked furniture sizes like sofa 2500 mm, sofa 2300 mm, sofa 1900 mm, salon 1300 mm, salon 900 mm, and compact salon 800 mm help designers accurately plan living rooms, lounges, and seating areas. Each layout is drafted with proper proportions to support space planning, furniture zoning, and circulation analysis for interior layouts.

The drawing also includes top views and front elevation views of sofa sets and chairs, allowing architects and designers to understand furniture height, depth, and alignment with surrounding elements. This DWG file is ideal for use in AutoCAD, 3d Max, Revit, and SketchUp workflows, supporting professional furniture planning and interior detailing. With clean linework and editable layers, the file helps reduce drafting time while maintaining design accuracy. Access to this drawing through a Cadbull subscription supports efficient project execution and consistent furniture layout standards across residential homes, villas, apartments, and commercial interiors.
