Retaining Wall Section With Shelter And Planter Construction Drawing

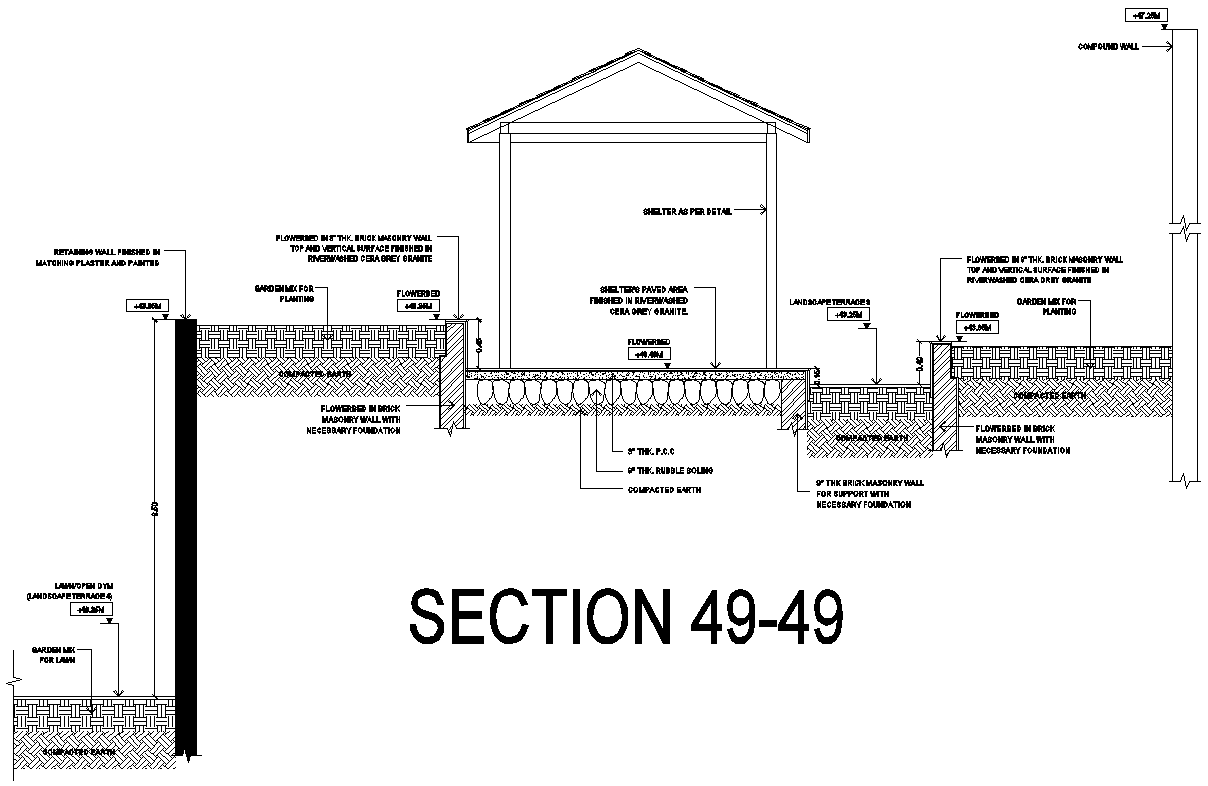

This AutoCAD drawing illustrates a detailed structural section of a retaining wall integrated with a shelter and planter arrangement. The section clearly shows stepped retaining walls constructed with brick masonry and necessary foundation support, including compacted earth, PCC layers, and rubble soling. Finished ground levels, landscape terraces, and planter bed positioning are precisely annotated. The drawing highlights plastered masonry walls, coping levels, and vertical height references to ensure accurate execution. Dimensional details such as wall thickness, foundation depth, planter width, and level differences are clearly marked to support construction planning and site coordination.

The section also includes a shelter structure positioned above the retaining system, with roof slope, column placement, finished floor level, and granite flooring clearly defined. Adjacent landscape steps, compound wall alignment, and lawn level transitions are illustrated for integrated architectural and landscape design. This DWG file is suitable for architects, civil engineers, and landscape designers working on site development and structural detailing. Subscription access allows professionals to directly use this ready-to-use AutoCAD drawing to reduce drafting time, maintain construction accuracy, and ensure coordinated execution across structural and landscape elements.
