Water Treatment Plant Channel Section and Structural Details

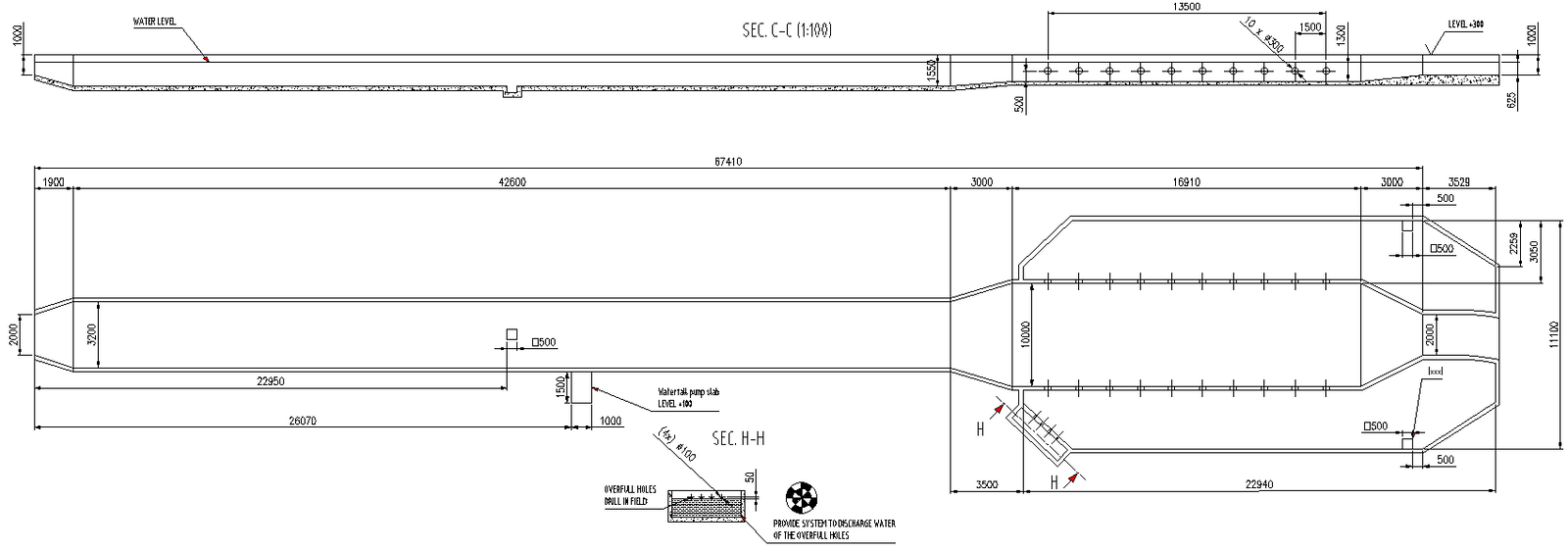

This AutoCAD drawing presents a detailed water treatment plant channel section with comprehensive structural and dimensional information. The drawing includes longitudinal and cross sections marked as Section C C and Section H H, clearly showing channel geometry, base slab thickness, side wall profiles, and water flow levels. Overall channel length is indicated up to 67410 mm, with internal segmented lengths such as 42600 mm, 3000 mm, and 16910 mm for accurate planning and construction sequencing. Water level references, stepped invert profiles, and slope transitions are clearly annotated to support hydraulic performance and flow control.

The structural detailing further highlights channel depth variations of 1000 mm and 2000 mm, wall height transitions, overflow hole positioning, and discharge water routing from overflow zones. Concrete thicknesses, reinforcement zones, and pump slab levels are shown to ensure clarity in civil execution. Dimensional callouts such as 13500 mm platform length, 1500 mm offsets, and 500 mm wall steps support precise site implementation. This AutoCAD DWG file is suitable for civil engineering, water infrastructure planning, and treatment plant construction documentation. Access through a Cadbull subscription allows professionals to integrate this accurate channel section drawing into AutoCAD, Revit, and other compatible CAD platforms for reliable design coordination.
