Tie Rod And Spacer Section Detail Drawing With Weld And Lengths

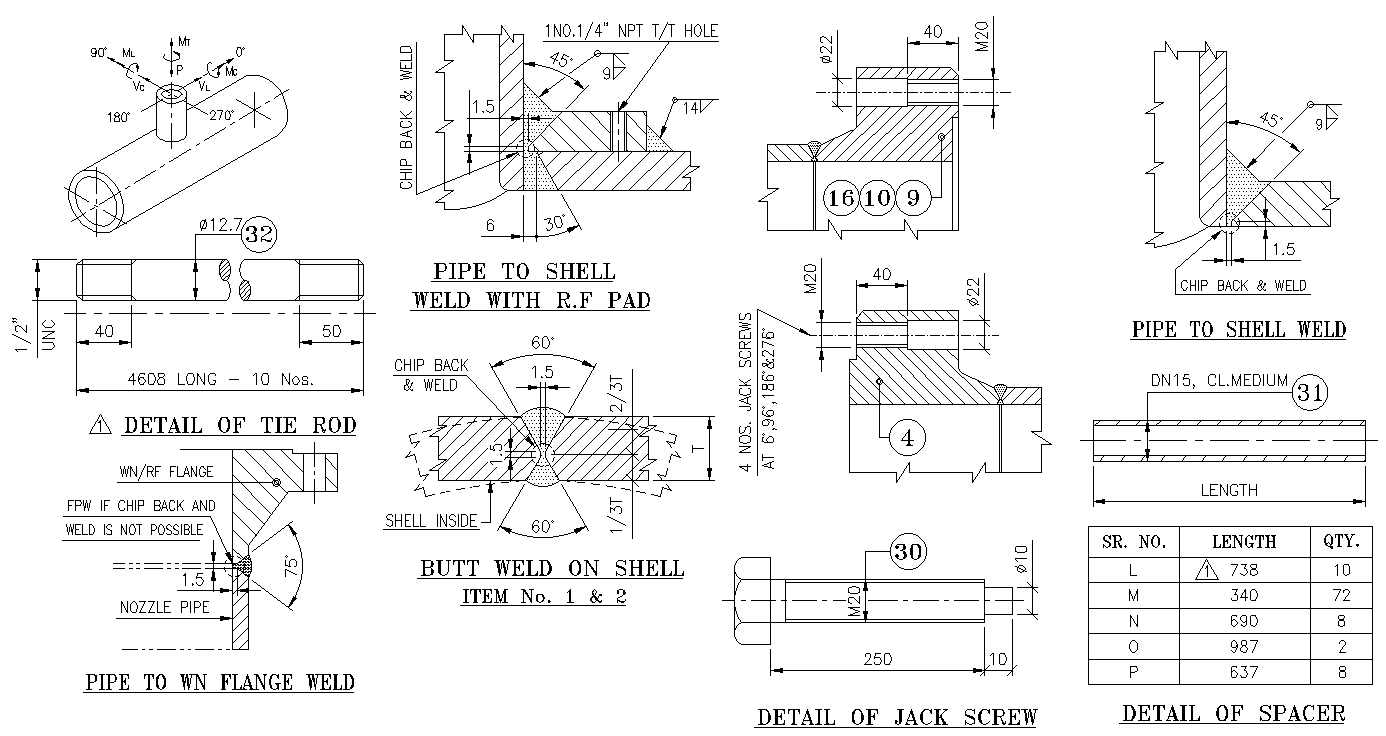

This AutoCAD drawing presents detailed section views of tie rod and spacer components used in machinery and pressure equipment assemblies. The drawing includes tie rod details with threaded ends, showing 1 by 2 inch UNC threading, 40 mm and 50 mm end lengths, and an overall tie rod length of 4608 mm for a quantity of 10. Spacer details are clearly tabulated with multiple lengths such as 738 mm, 340 mm, 690 mm, 987 mm, and 637 mm with corresponding quantities for accurate fabrication planning. Dimensional callouts, centerlines, and section hatching ensure a precise understanding of component geometry.

The drawing further illustrates pipe-to-shell weld details with reinforcement pad, butt weld on shell, and pipe-to-weld neck flange connections. Weld angles of 45 degrees, 60 degrees, and 75 degrees are clearly indicated along with chip back and weld notes for fabrication clarity. Additional details include jack screw sections with M20 threading, 250 mm body length, and 10 mm end thickness, as well as DN15 CL medium pipe sections with diameter references. This AutoCAD DWG file is suitable for mechanical detailing, fabrication drawings, and industrial equipment design. Access through a subscription allows professionals to directly integrate this precise tie rod and spacer drawing into AutoCAD and compatible CAD platforms for accurate execution.
