Reinforced Cement Ditch Superelevation Curve Road Section Drawing

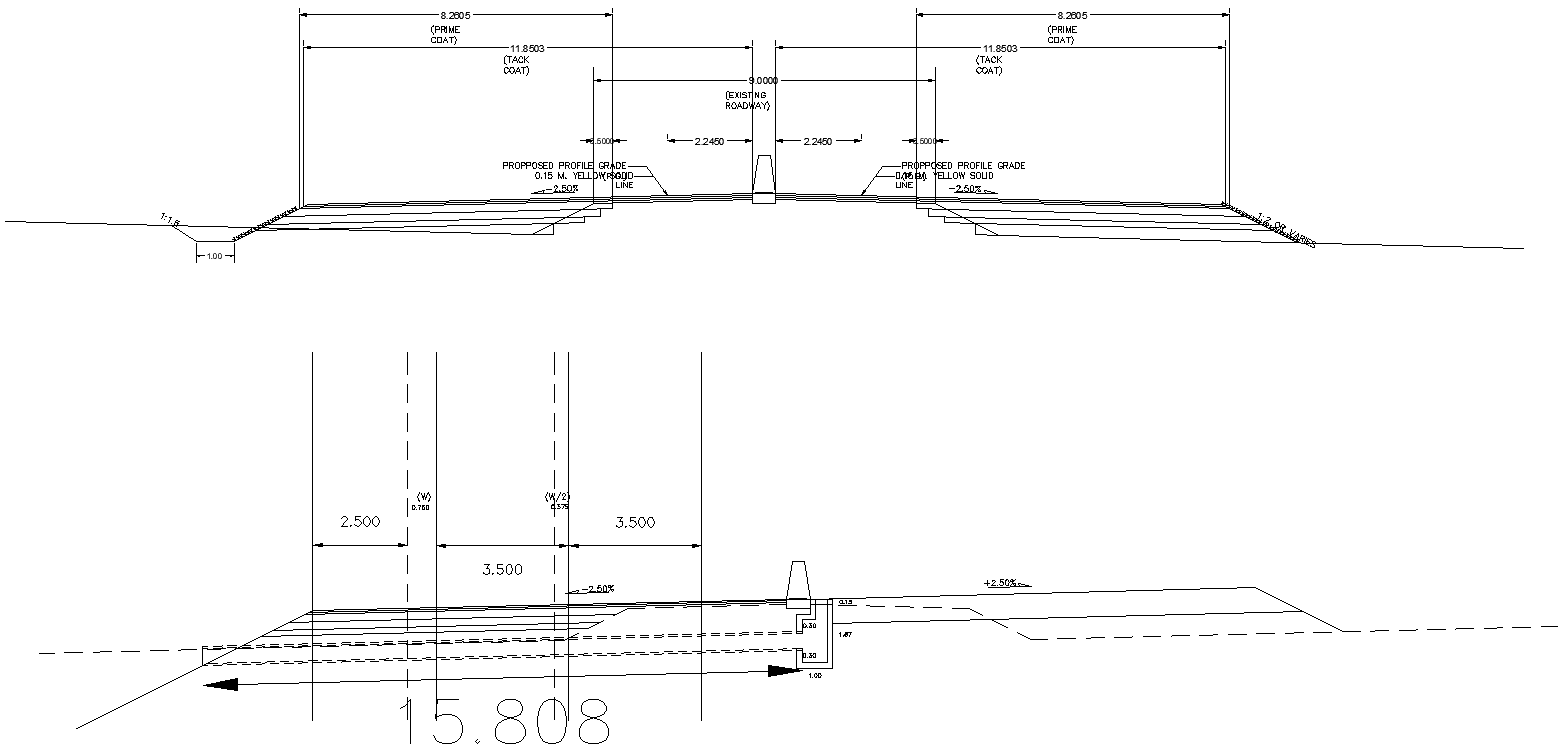

This AutoCAD DWG file illustrates a reinforced cement ditch design integrated with road superelevation and curve geometry for highway and infrastructure projects. The drawing clearly presents cross-sectional and longitudinal profiles showing existing roadway levels, proposed profile grade, and finished road surface with slopes marked up to ±2.50 percent. Dimensions such as overall width of approximately 15.808 meters, lane widths of 3.500 meters, shoulder widths of 2.500 meters, and ditch offsets are accurately annotated. The section includes reinforced cement ditch placement, edge transitions, and grading tie-ins to surrounding ground levels for effective surface water drainage.

The drawing also details pavement layer extents, including prime coat and tack coat widths of 8.2605 meters and 11.8503 meters, respectively. Superelevation transition lengths, centerline references, and curve data are clearly marked to support road safety and proper vehicular movement. This DWG file is suitable for civil engineers, highway designers, and infrastructure consultants who require precise road drainage and superelevation drawings. It supports detailed planning, construction documentation, and compliance with roadway design standards while providing clear dimensional data for execution on site.
