Quick Coupler Valve Technical Drawing AUTOCAD DWG File
Tags
#Quick Coupler Valve AutoCAD DWG#Coupler Valve Technical Drawing DWG#Coupler Valve Detail AutoCAD DWG#Quick Coupler Valve Design AUTOCAD File#Quick Coupler Valve DWG File#Technical Drawing Quick Coupler Valve CAD Black#Valve Detail Drawing AutoCAD#Coupler Valve DWG Design#Quick Coupler Valve Specifications AUTOCAD DWG#Technical Drawing Coupler Valve DWG
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

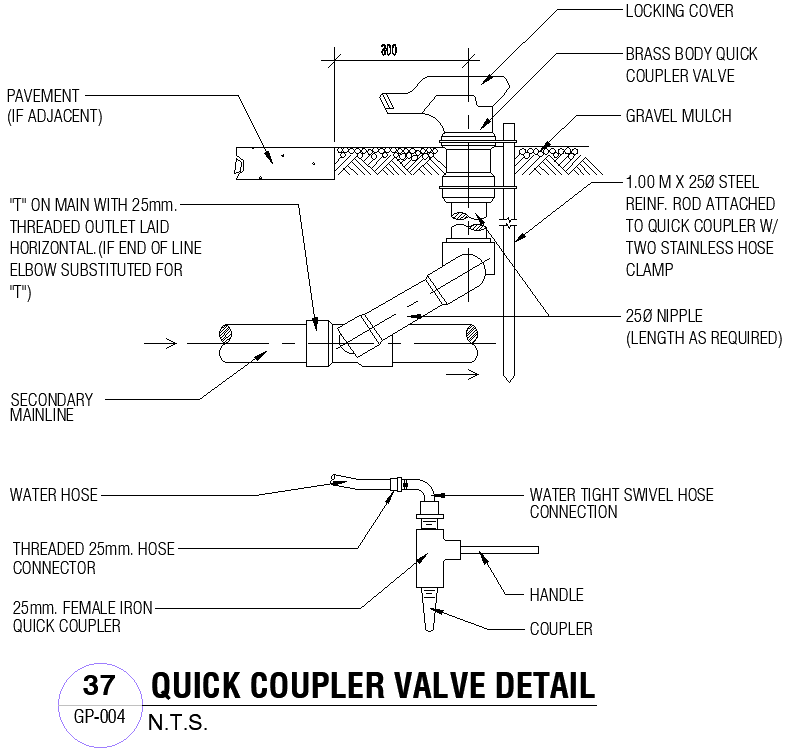

Quick Coupler Valve Technical Drawing AutoCAD DWG Download, featuring detailed specifications including a 'T' on main with a 25mm threaded outlet laid horizontally, a 25mm female iron quick coupler, handle, 1.00m x 25mm steel reinforced rod attached to the quick coupler with two stainless hose clamps, and a 25mm nipple. This comprehensive DWG file provides essential design details for precise valve installation and integration, ideal for engineers and construction professionals.
Uploaded by:
Eiz Luna
