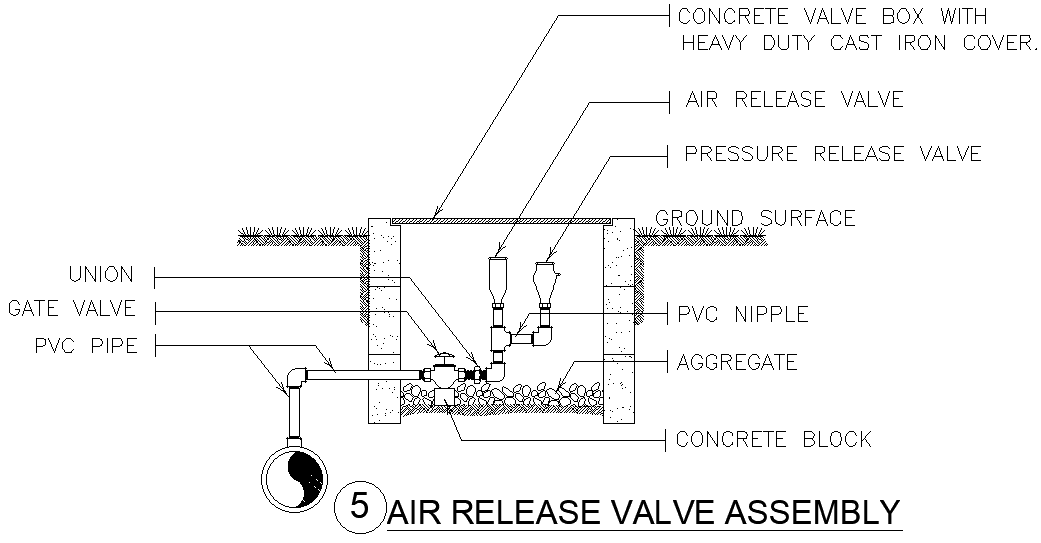

Air Release Valve Assembly Piping System AutoCAD DWG Download Now Get complete design details with technical drawings of piping system in different configuration. The drawing consists of detailed assembly of air release valve consisting of essential elements constituting the installation and maintenance of such assemblies, namely PVC pipes and concrete blocks. This file has clear, accurate layouts that guarantee perfection in execution and planning, be the professional an engineer, architect, or contractor. The measurements and annotations are for every part, suitable for both residential and commercial piping systems, as one can design and set up air release mechanisms within an effective approach. The DWG format will not have any compatibility issues with any CAD software and thus is easy to integrate into your existing plans or to modify as needed for specific project requirements. This model is great for designing systems that require pressure relief to avoid air entrapment in piping networks must-have for highly detailed and reliable plumbing and HVAC designs.
