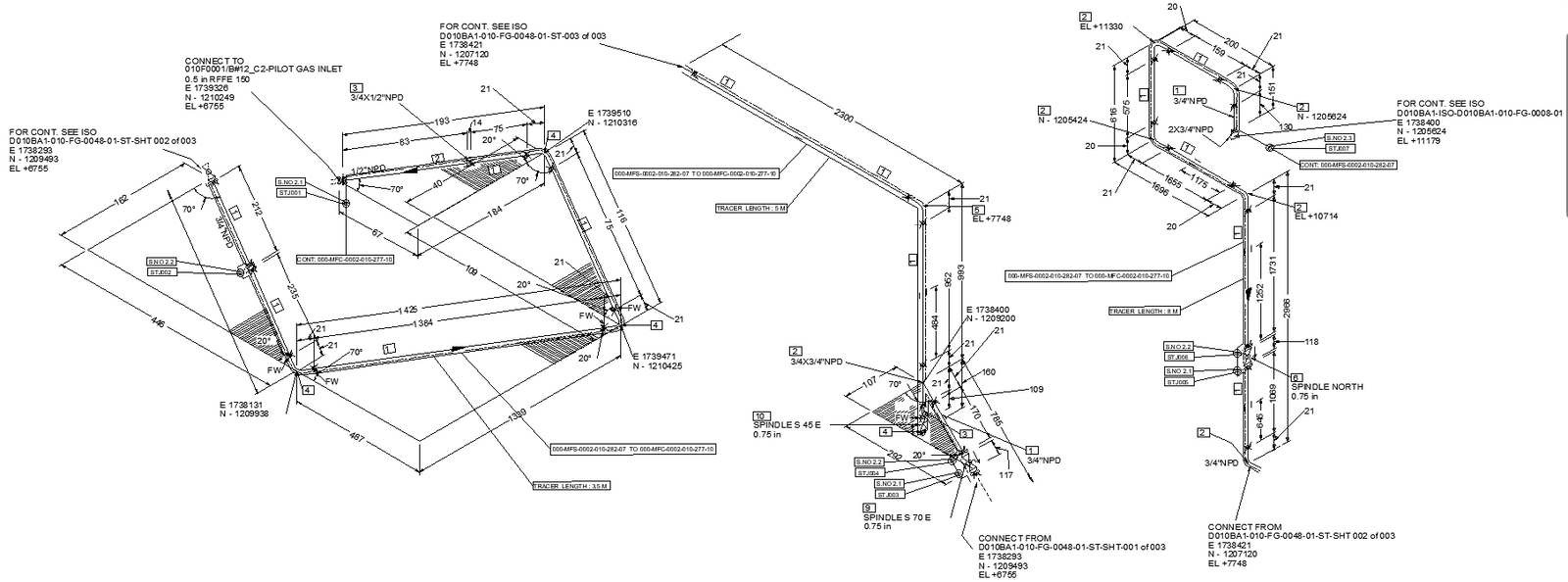

Oil and Gas Piping Details Design Engineering AutoCAD DWG File

Detailed engineering design for oil and gas piping is best described with this comprehensive AutoCAD DWG file. The drawing file contains all the key piping arrangements relevant to dimensions, materials, and connecting points, for both the professional and the student specializing in oil and gas engineering. This design ensures the smooth movement of the oil and gas mix within the pipelines, while safety measures and industrial practices are duly observed. Basically, it includes pipeline configurations, details of flanges, locations of valves, and pipe supports that give the exact layout for installation and maintenance. The DWG file is ideal for refineries, processing plants, and transportation systems. It gives a noise-free, clear, and accurate visual of the whole piping network; hence, it is quite easy to integrate within bigger engineering projects. It includes all necessary information on any new or existing pipeline for safe and efficient operation. This is a very useful AutoCAD drawing of oil and gas piping.
