2D DYNAMIC BLOCK DOOR

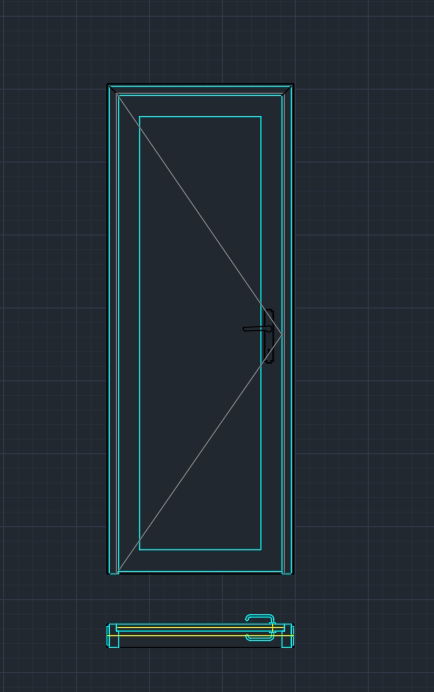

A 2D Dynamic Block Door is a versatile design element used in CAD software, particularly AutoCAD, to represent doors in architectural drawings. Here’s a detailed description of its features and functionalities: Description of a 2D Dynamic Block Door Basic Structure: 1. Shape: Typically represented as a rectangle or a combination of shapes (for panels). 2. Components: May include additional features like doorknobs, hinges, and panel details. Dynamic Features: Scalability: 1. The block can be resized to different widths and heights, allowing it to fit various door openings without creating multiple blocks. Visibility States: 2. Can represent different door types or positions (e.g., open, closed, sliding, double doors) using visibility states. Parameter Control: 3. Linear Parameters: Allow adjustments to the door's dimensions (width and height). Rotation Parameters: Enable the block to be rotated, facilitating the representation of doors opening in different directions. Action Assignments: 4. Stretch Action: Linked to parameters, allowing users to click and drag to resize the door. Move Action: Useful for changing the position of the door within the drawing. Grip Points: 5. The block has designated grip points that make it easy to manipulate its size and position directly in the drawing area. Usage Scenarios: 1. Architectural Plans: Easily integrates into floor plans to visualize door placements. 2. Construction Documents: Provides a clear representation of door types and sizes for builders. 3. Renovation Projects: Facilitates quick adjustments when modifying existing layouts. Benefits: 1. Efficiency: Saves time by reducing the need for multiple door block creations. 2. Flexibility: Adapts to various design requirements and can be modified on the fly. 3. Standardization: Ensures consistency in door representation across different projects. Overall, a 2D Dynamic Block Door enhances the design workflow, making it easier for architects and designers to manage door elements in their drawings.
