House Beam and Column Details AutoCAD Drawing with RCC Sizes

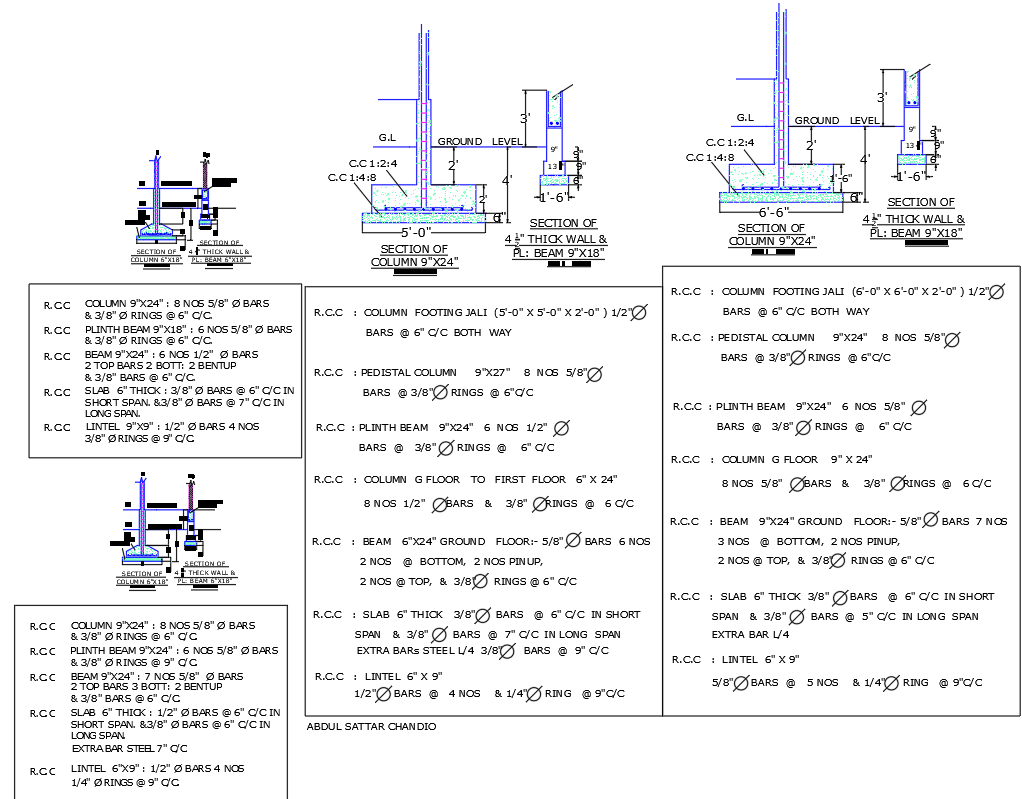

This AutoCAD DWG drawing provides comprehensive architectural house beam and column details with clearly defined RCC structural specifications. The drawing includes column sections, beam sections, plinth beam details, footing sections, and slab connections, all drafted with accurate dimensions and reinforcement notes. Column sizes such as 9 inch by 24 inch and pedestal column details are shown along with RCC footing jali dimensions of 5 feet by 5 feet by 2 feet and 6 feet by 6 feet by 2 feet. Reinforcement details specify bar diameters, number of bars, ring spacing, and concrete mix proportions, making the drawing suitable for residential and small commercial construction projects.

The beam details include plinth beams and floor beams with sizes like 9 inches by 24 inches and 9 inches by 18 inches, showing top and bottom reinforcement, ring spacing, and no pinup bar arrangements. Slab details specify 6 inch slab thickness with bar spacing in short and long spans, along with extra steel placement. Lintel sizes such as 6 inches by 9 inches are also clearly detailed with reinforcement specifications. This AutoCAD DWG file is ideal for civil engineers, architects, and structural designers who require ready-to-use beam and column construction drawings with precise RCC detailing for safe and accurate building execution.
