Bathroom Sectional Elevations with Fixture Layout and Tile Dimensions

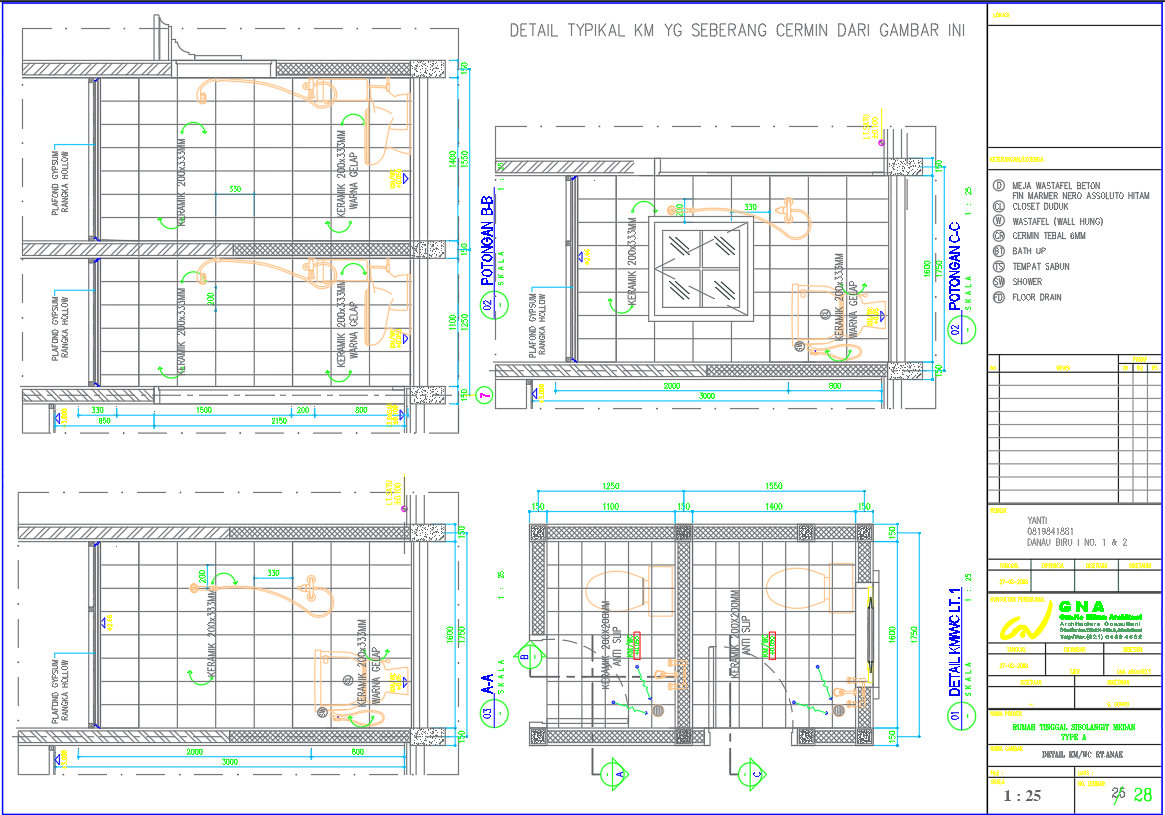

This bathroom sectional elevation set presents complete architectural detailing for multi-cubicle washroom spaces, including precise measurements, elevations, and fixture placements. Each shower cubicle is shown with a clear width of 1000 mm, ceramic wall tiles sized 200×333 mm, and wall-mounted shower fixtures positioned accurately for installation. The drawings highlight gypsum ceiling panels supported by a hollow frame system, along with plumbing line routes, faucet positions, soap holder levels, and floor drain locations. Elevation C-C illustrates mirror placement and vanity alignment, while sectional A-A and B-B show accurate tile distribution, fixture spacing, and height references reaching approximately 2700–2900 mm. The lower plan views include cubicle partitions, door swing directions, spacing between toilets, and alignment for accessible design. The drawings ensure precision in washroom construction, making them highly suitable for architects, civil engineers, interior designers, and contractors developing residential or commercial bathroom layouts. Students can also rely on these details to study functional bathroom zoning and fixture ergonomics.
