House Roof Detail structural Section Slope Drainage Material Layout

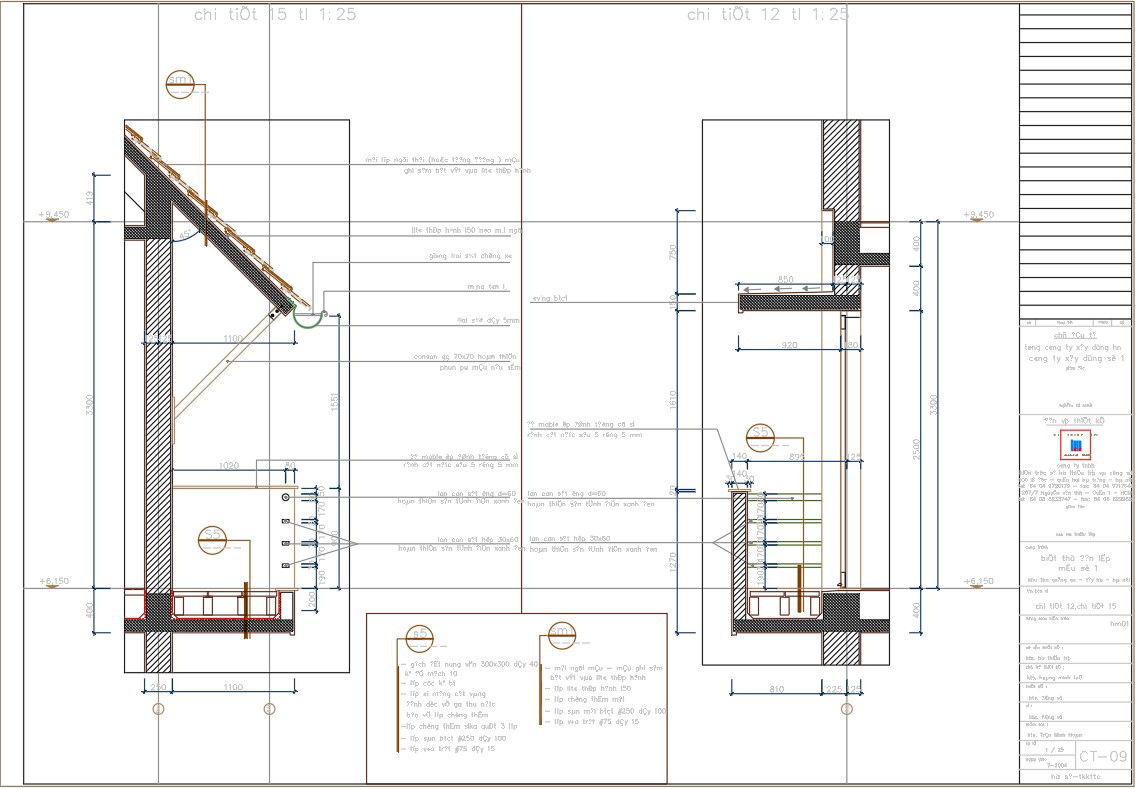

This AutoCAD DWG file presents a complete house roof detail DWG with structural section slope drainage and material layout, offering highly accurate architectural and structural information for residential roof construction. The sectional drawings illustrate key components such as roof slope measurements, tile arrangement, gutter installation, downpipe transition, fascia profiles, and the connection between the roof structure and the supporting wall. Detailed annotations show purlin spacing, beam positioning, structural timber sizes, ceiling levels, and bracket placement for load distribution. Material layers, including insulation, waterproofing, and plaster finishes, are clearly labeled to ensure precision during construction.

Additional sectional cuts provide insight into drainage flow channels, edge detailing, reinforced concrete interface zones, and ceiling support systems. The drawings also include dimensioned references for soffit depth, wall thickness, structural beam centers, and ground-to-roof height levels. These accurate and professionally drafted details make the file ideal for architects, civil engineers, contractors, and designers who require dependable residential roof construction references. Its clarity and construction-ready format also benefit architecture students seeking real-world roof detailing examples. This DWG file encourages users to subscribe for continued access to high-quality architectural resources.
