Residential Compound Wall with Gate Elevation Plan and Section Details

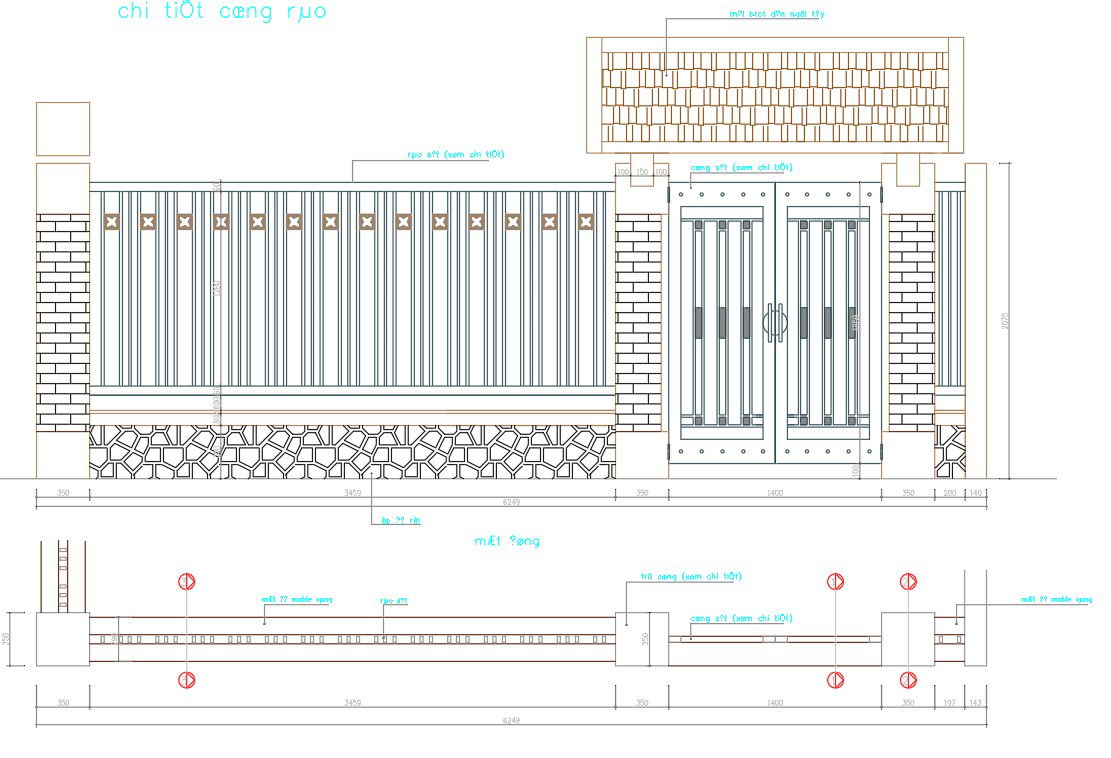

This AutoCAD DWG file presents a complete residential compound wall DWG with gate elevation plan and section details, offering precise architectural and structural information for residential boundary design. The elevation view shows the full compound wall height, stone masonry base, vertical railing design, decorative inserts, and brick pillars supporting the main gate structure. The main gate elevation illustrates gate leaf dimensions, handle placement, reinforcement patterns, and alignment with adjacent pillars. Detailed dimension lines specify wall lengths, column spacing, ground level indicators, and coping heights to ensure accurate execution on-site.

The plan and sectional details further enhance clarity by showing footing alignment, wall thickness measurements, reinforcement bar distribution, and base structure layering. Additional annotations highlight material specifications, finishing patterns, joinery conditions, and connection points between the gate and the compound wall. These drawings are especially useful for architects, civil engineers, interior designers, and builders requiring ready-to-use DWG details for residential compound construction. The clear layout and structured representation of architectural and structural components make this file an excellent resource for professionals, encouraging them to subscribe for continued access to high-quality CAD drawings.
