Multi Storey RCC Structural Plan with Column Beam Slab Details

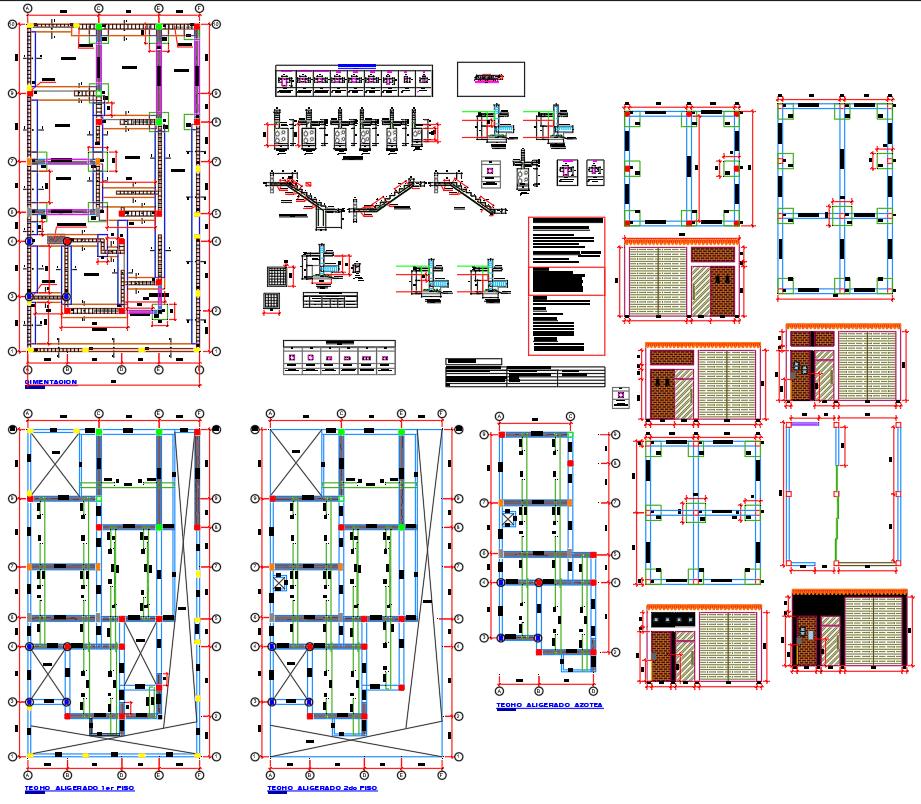

This AutoCAD drawing shows a complete multi storey RCC building structural plan with detailed floor-wise layouts. The file includes foundation plans, column positioning, beam alignment, slab layout, staircase details, and sectional drawings. It also contains footing details, reinforcement sections, grid lines, and level markings. All structural components are drafted with accurate measurements in millimeters, center lines, offsets, and reference points for construction use. The drawing displays ground floor, typical floor, and terrace slab layouts with clear dimensioning and material annotations.

The drawing also presents column schedules, beam sections, connection joints, and structural notes. Separate views for footing sections, slab thickness, staircase reinforcement, and support details are provided. Wall alignment, load-bearing elements, and structural framing are clearly represented. The file includes enlarged details for column-beam junctions, foundation depth, and slab reinforcement. Every layout is properly scaled and organized for technical interpretation. This structural drawing focuses on measurable construction data, making it suitable for planning, estimation, and execution purposes.
