Residential Electrical Service Cabinet and Load Distribution Drawing

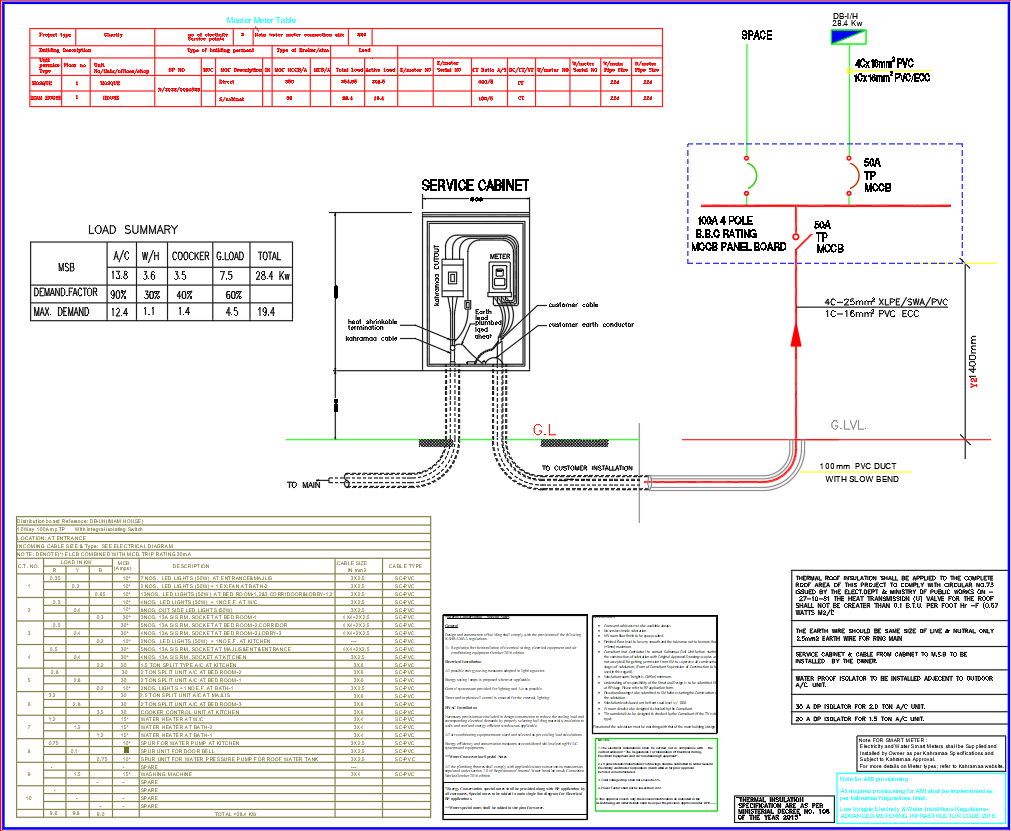

This technical drawing presents a detailed residential electrical service cabinet and main power distribution layout with accurate load calculations. The image shows meter installation, service cabinet arrangement, MCCB panel board, isolator positioning, and incoming and outgoing cable connections. Load summary tables display connected load, demand factor, and maximum demand values for air conditioning, water heater, cooker, and general power circuits. Cable sizes, conduit routing, and earthing conductors are clearly marked to support proper electrical planning and safety compliance. All elements are drafted with correct scale, reference lines, and standard electrical design practices.

The layout also illustrates underground duct routing, grounding level alignment, protective devices, and circuit segregation for efficient power management. Distribution boards, feeder cables, and switching arrangements are clearly labeled for installation and maintenance guidance. The drawing focuses on load balancing, voltage regulation, and system reliability in residential buildings. Technical notes, specifications, and installation instructions are included for site execution accuracy. This drawing supports engineers, contractors, and consultants in preparing working drawings, estimating materials, and implementing safe electrical infrastructure for housing projects.
