Motorized Sliding Glass Door Design DWG with 1 to 7 Panel Layouts

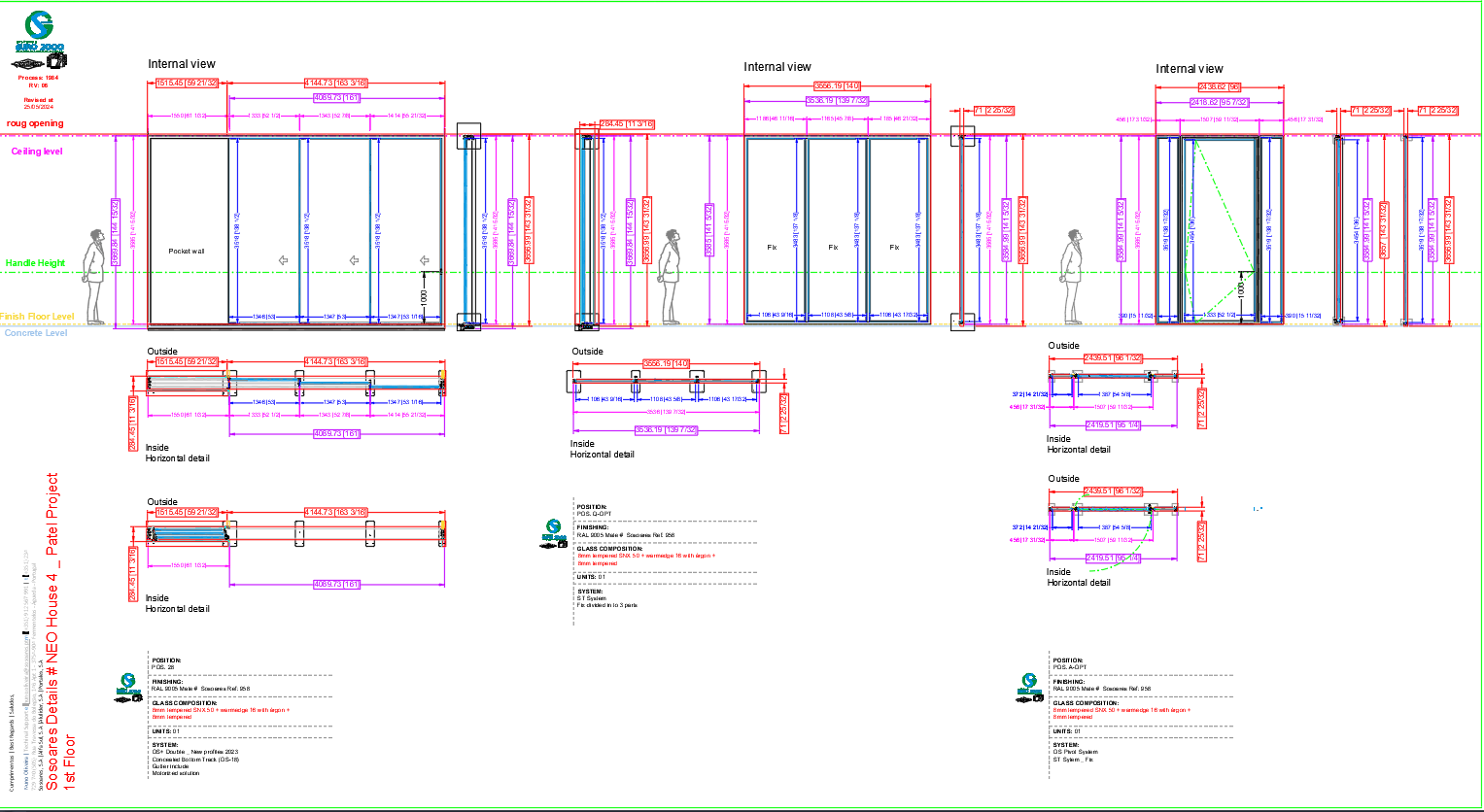

This Motorized Sliding Glass Door Design DWG file features a complete set of detailed drawings for 1 to 7-panel automated glass door systems. The internal views display precise measurements for each sliding panel, including widths such as 1515, 1448, 1450, 1530, and 2145, along with height references aligned from ceiling level to finish floor level. The pocket wall placement, handle height, glass composition, and motor system alignment are marked clearly for accurate installation. Horizontal section details illustrate inside and outside frame dimensions, guide profiles, and mechanical spacing essential for smooth sliding operation.

The drawing further includes system specifications such as laminated glass thickness, tempered finish, aluminum frame profiles, and motorized track components. Multiple sectional views highlight panel overlap, track depth, door stop positions, and clearance levels required for automated movement. This DWG layout is suitable for high-end residential, commercial, and industrial applications where modern sliding door systems are required. Architects, interior designers, civil engineers, and fabrication professionals can use these detailed measurements and sectional breakdowns to plan precise construction, coordination, and installation of automated glass door assemblies.
