Commercial High Rise Building Elevation and Structure AutoCAD File

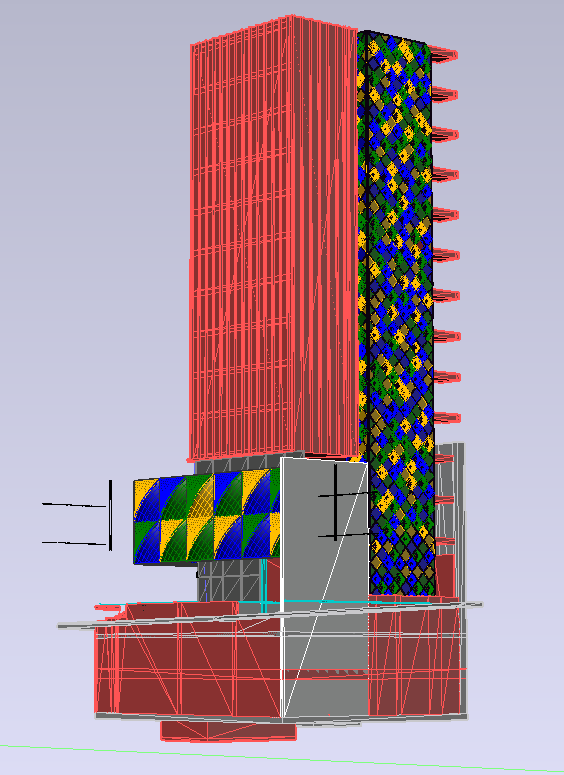

This AutoCAD DWG file provides a modern high-rise tower facade and structural plan prepared for professional architectural and engineering projects. The drawing shows a multi-storey commercial building with patterned elevation panels, vertical framing system, balcony projections, podium structure, and core layout. It includes detailed floor slabs, column grids, external cladding arrangement, beam alignment, and service shaft positioning. The approximate building height is 82 meters with 19 floors, standard floor height of 4.3 meters, podium height of 6.5 meters, and base footprint measuring 40 x 28 meters. This file supports architects, civil engineers, interior designers, and builders in planning and designing high-rise developments.

The drawing is developed with proper scale, layer management, dimensioning, and line standards for smooth professional use. The file assists in facade planning, structural coordination, and vertical circulation layout. It is useful for design presentations, construction documentation, and project development.
