Reinforced Concrete Beam Section Design With Bar Layout And Dimensions

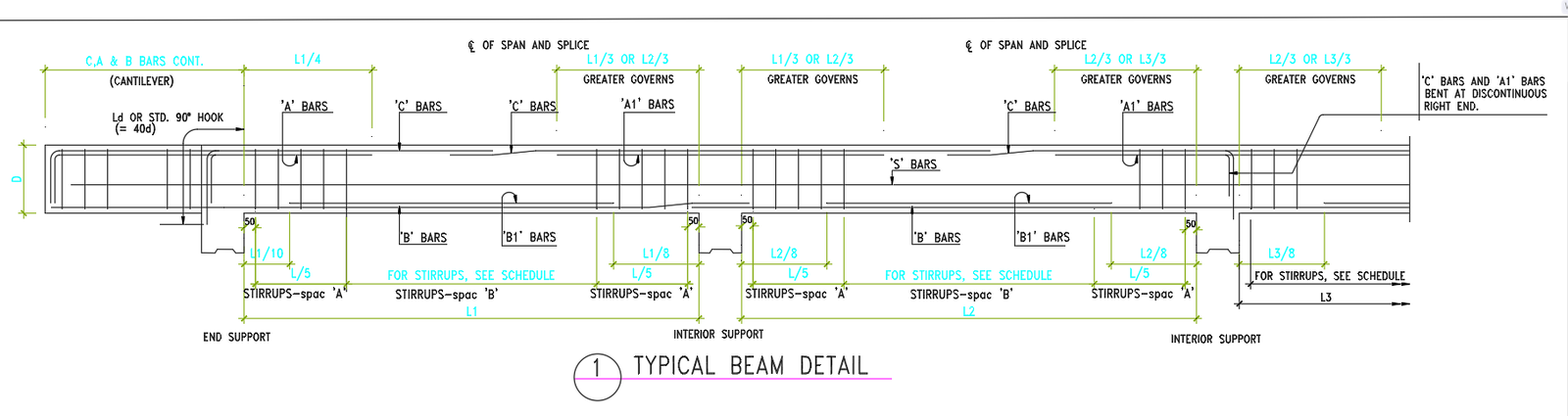

This drawing shows a reinforced concrete beam section design with complete bar layout, structural dimensions, and support detailing for building construction projects. The AutoCAD file includes top and bottom reinforcement bars, stirrup spacing, lap splice zones, anchorage length, hook details, cantilever reinforcement, and interior support connections. All beam spans are clearly marked with L1, L2, and L3 measurements, ensuring accurate structural planning and site execution. This RC beam section design supports professional drafting, structural coordination, and material estimation for residential, commercial, and institutional structures. Architects and civil engineers can use this structural beam drawing to understand load distribution and bending reinforcement placement.

The reinforced concrete beam drawing with bar layout and dimensions improves construction accuracy and long-term structural stability. It provides clear guidance for beam depth, concrete cover, shear reinforcement, and continuity bars.
