Road Light Pole Design Details with Structural and Sectional Views

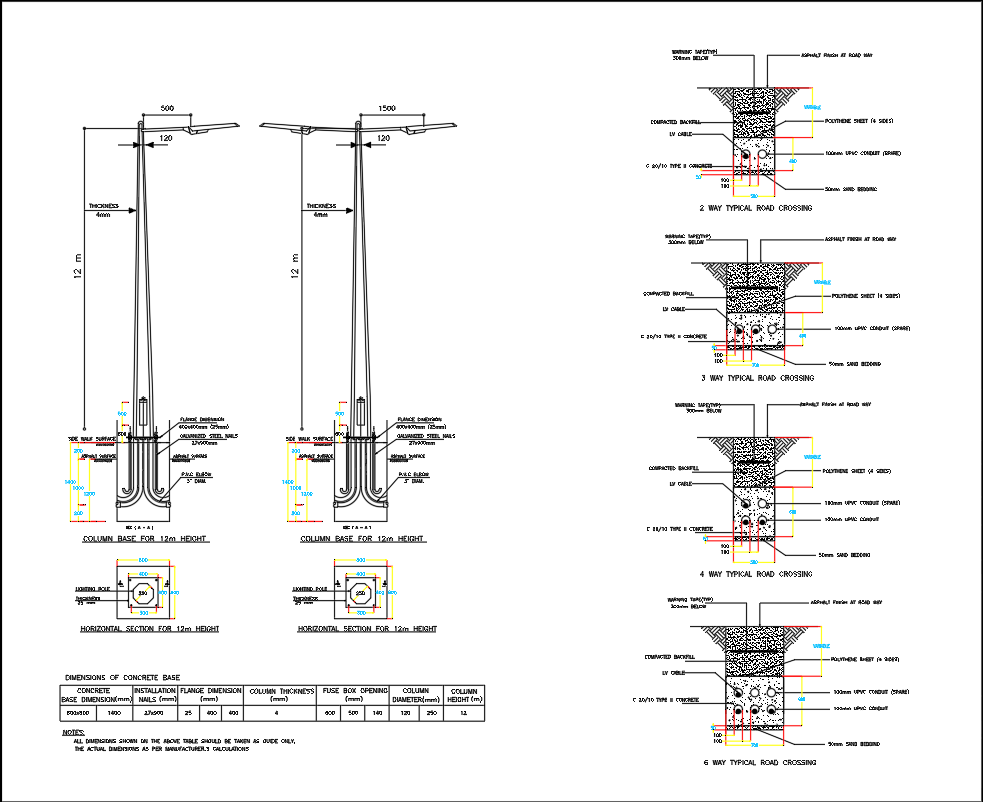

This road light pole design drawing provides complete structural and dimensional details for poles used in urban roads, walkways, and highway lighting systems. The file includes elevation views of twelve metre high poles with arm lengths of five hundred millimetres and fifteen hundred millimetres. The drawing shows the base plate arrangement, anchor bolt positions, flange dimensions, and pole thickness. Horizontal section details illustrate foundation width, cable entry paths, reinforcement bar configuration, and concrete depth required for safe installation. A complete table summarises dimensions such as column diameter, concrete block size, fuse box spacing, and recommended embedment depth.

The sheet also features multiple road crossing sections, including two-way, three-way, four-way, and six-way cable routes. Each section displays trench layers such as asphalt finish, compacted backfill, protective sheet, sand bedding of one hundred fifty millimetres, and conduit paths for LV and control cables. Additional notes explain installation requirements for grounding rods, connection sleeves, support clamps, and cross-sectional reinforcement. This DWG file is ideal for civil engineers, electrical designers, street lighting contractors, and infrastructure planners who need accurate construction-ready details for lighting pole foundations and road crossing arrangements.
