27x50 Residential House Plan with Ground and First Floor Layout

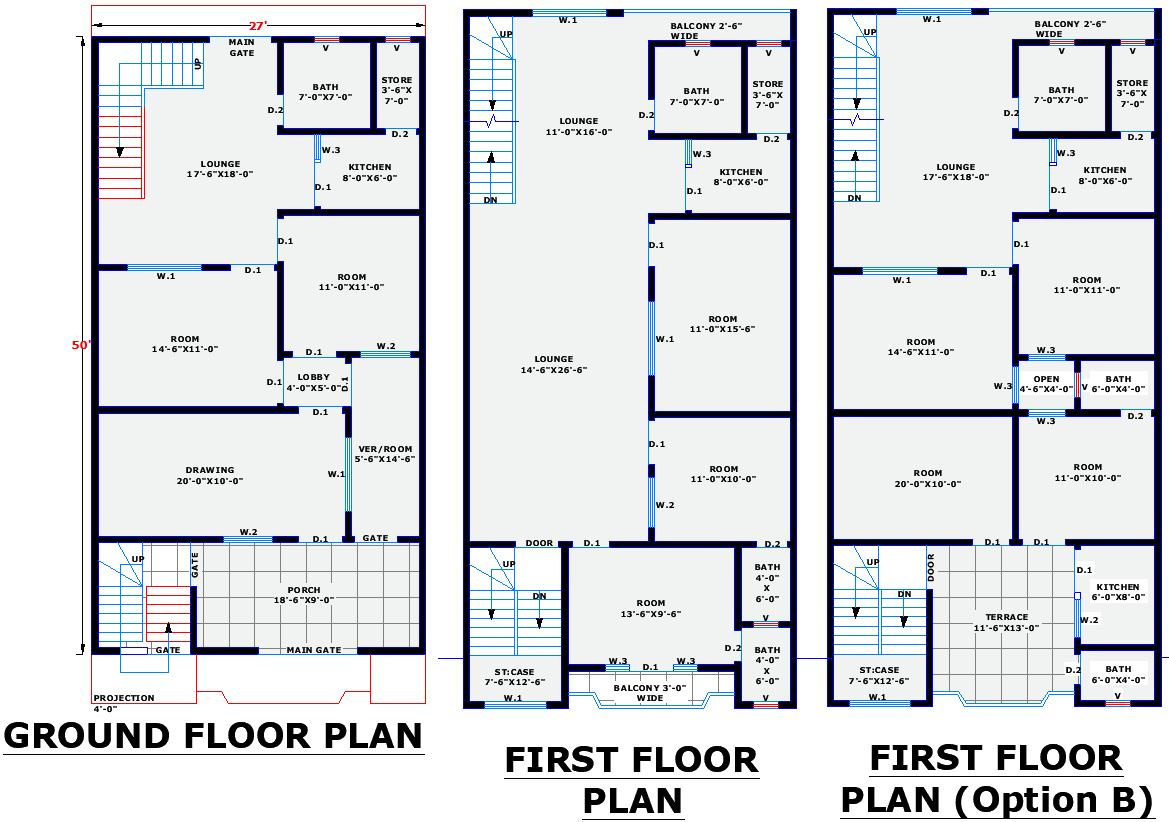

This AutoCAD DWG drawing shows a complete 27x50 residential house plan with a clearly detailed ground floor and two first-floor layout options. The ground floor plan illustrates a functional arrangement including a spacious drawing room, large lounge, bedrooms with defined dimensions, kitchen area, bathrooms, lobby, verandah, staircase, and a front car porch. All rooms are properly labeled with internal measurements, door and window positions, wall thickness, and circulation paths, making the drawing suitable for accurate residential planning and execution.

The first floor plan includes multiple bedrooms, lounges, bathrooms, balconies, and a staircase core with two alternative layout options for flexible design requirements. Option B provides a different spatial configuration with terrace access, kitchen placement, and room orientation while maintaining the same 27x50 plot size. The drawing clearly represents balcony widths, stair dimensions, and room sizes, ensuring easy understanding for residential construction and approval drawings. This DWG file is useful for architects, civil engineers, and designers looking for a ready reference residential house plan with precise measurements and editable CAD layers.
