DWG File of Single Pipe Support for Commercial Projects
Tags
#single pipe clamp support detail#slab-mounted pipe hanger system#commercial pipe support installation#pipe support system#MEP pipe clamp#commercial building installation.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

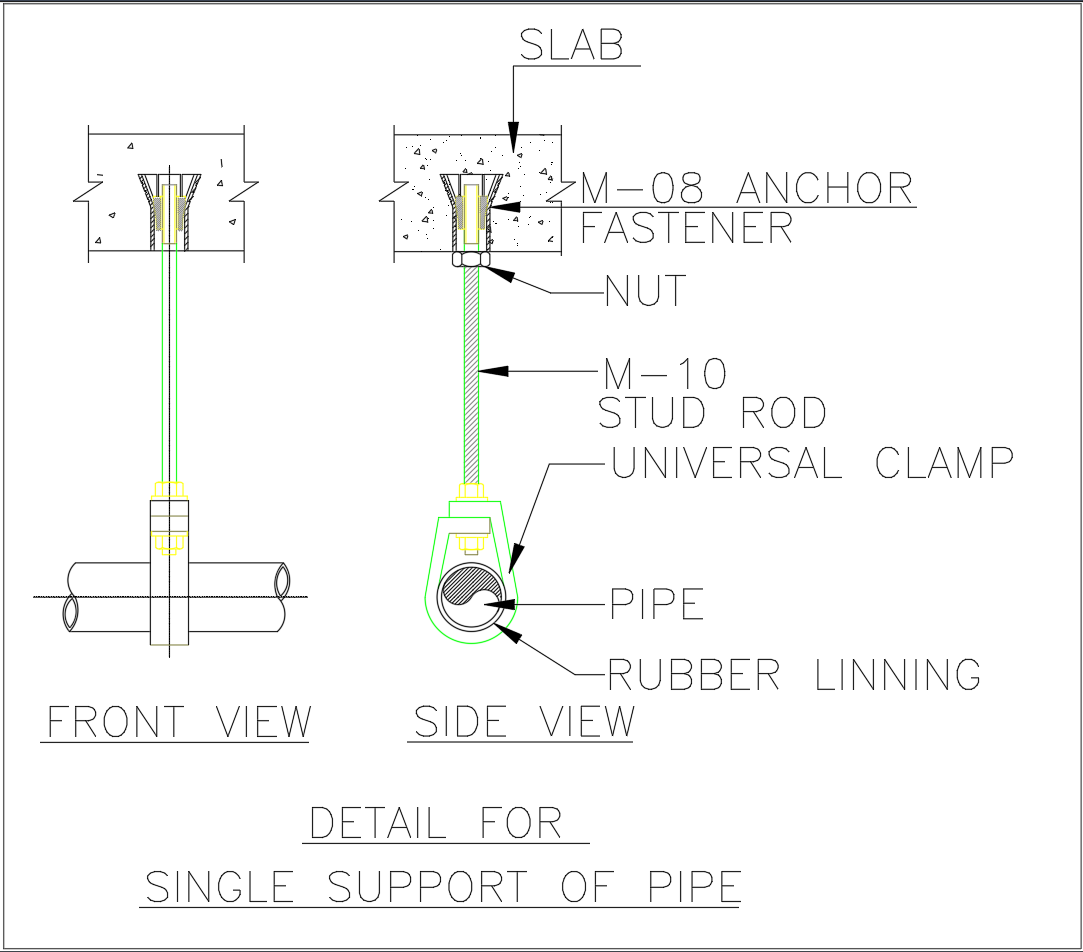

This single pipe support detail is ideal for commercial building applications. It includes an M-08 anchor fastener, M-10 stud rod, universal clamp, and rubber lining for enhanced grip and vibration reduction. Designed for HVAC, plumbing, and fire protection systems, ensuring stability and durability in MEP installations.
Uploaded by:
Eiz Luna
