2 BHK apartment layout DWG with 17x25m residential floor plans

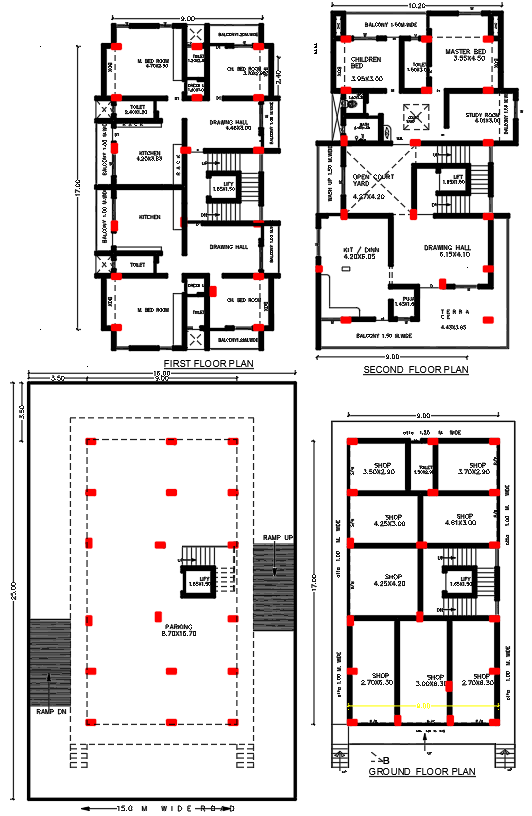

This AutoCAD DWG file presents a complete 17 x 25 metre 2 BHK apartment layout for multi-storey residential building projects, featuring detailed ground, first and second floor plans. The ground floor includes multiple shop units ranging from 3.00 x 6.10 m to 4.25 x 3.20 m, arranged along a central corridor for commercial use. The parking zone, measuring 8.70 x 16.70 m, is clearly defined with ramp-up and ramp-down access on both sides, ensuring smooth vehicle movement. The first floor showcases 2 BHK units with bedroom sizes such as 3.00 x 3.60 m, 3.00 x 3.00 m, and living or drawing hall spaces measuring 4.50 x 4.10 m. Additional rooms include dining areas, kitchens and attached toilets with accurate dimensioning.

The second floor plan continues with a refined residential layout, including a master bedroom of 3.55 x 3.50 m, children’s room of 3.00 x 3.00 m, and a living hall sized 5.10 x 4.10 m. An open court space of 4.75 x 4.70 m enhances ventilation and natural lighting across the apartment. Balconies, internal staircases, passageways and room arrangements are drafted to support modern residential architecture. This DWG is ideal for architects, civil engineers and builders seeking a clear, dimension-accurate 2 BHK residential plan for practical execution.
