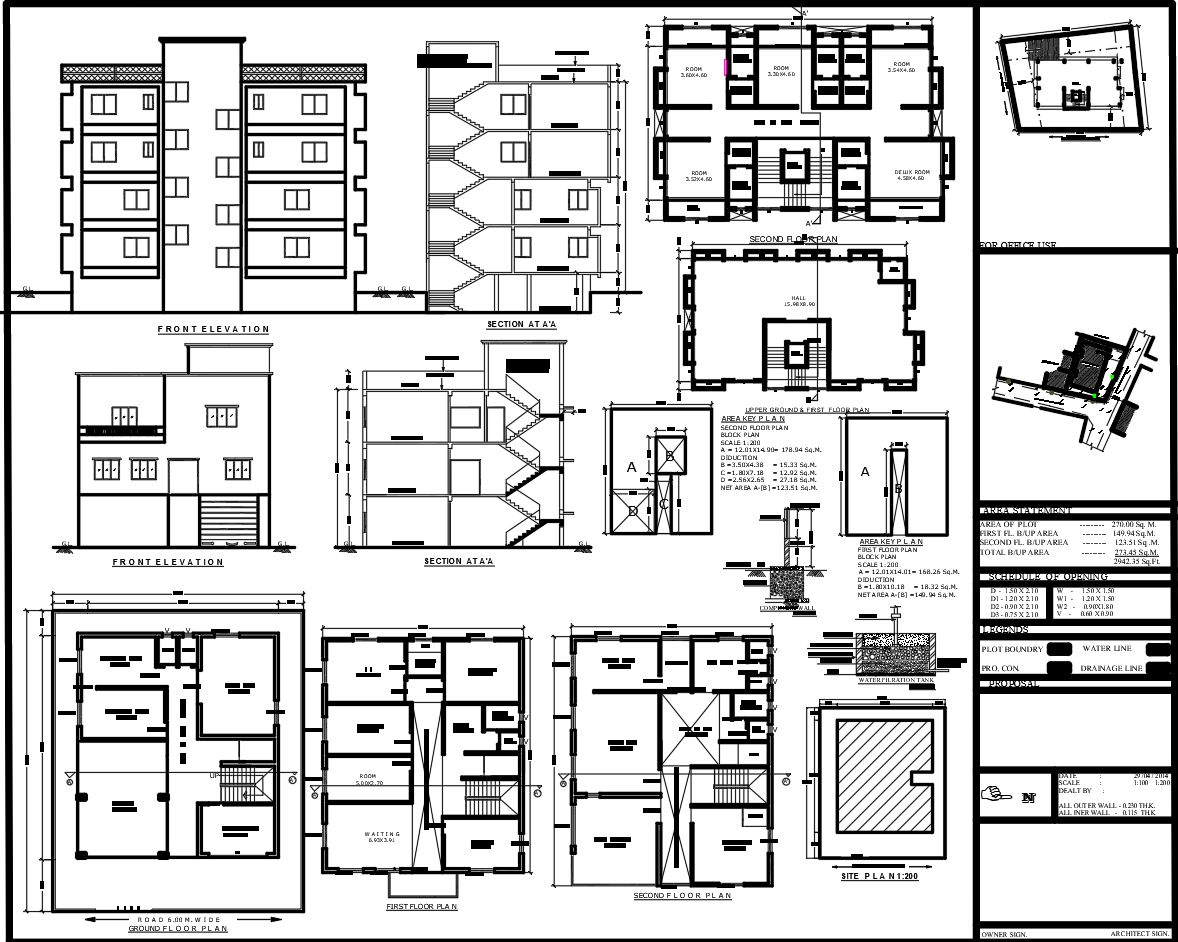

Multi Storey Apartment Building AutoCAD Plan With Elevation Section

This multi-storey apartment building AutoCAD plan provides a complete residential drawing set with detailed floor-wise planning and vertical coordination. The drawing includes ground floor, first floor, and second floor layouts with clearly defined room dimensions,s circulation areas,s staircases, and lift core placement. Each floor plan is aligned with structural walls and internal partitions to support practical residential use. Front elevation drawings show building height, façade proportion, window placement,t and overall massing, while section views explain floor-to-floor height, stair configuration, slab levels, and vertical connectivity in a clear architectural format.

The AutoCAD file also includes a site plan showing plot boundary, access orientation, and building positioning within the site. Area calculation tables present built-up area, floor-wise area, and total area references for planning and approval use. Standard scales, measurement annotations, and labeling are provided throughout the drawing,g making it suitable for execution detailing and coordination. This multi-storey apartment plan is ideal for architects, civil engineers,s and builders requiring accurate CAD drawings for residential design development documentation and BIM model preparation.?
