Coffee Table CAD Drawing With 20mm Plywood And 5mm Steel Details

This AutoCAD DWG file features a professionally drafted coffee table CAD drawing created for architects, interior designers, furniture designers, and construction professionals. The drawing clearly illustrates a modern coffee table with a stone top finished in clear platinum jade, accurately supported by a 20mm thick plywood top panel. The internal structure includes solid wood framing and solid wood cross supports, ensuring strength and durability. Detailed dimensions are provided for the 20mm plywood side panels and 20mm plywood bottom panel, allowing precise fabrication and material estimation. A dedicated blow up detail view highlights joint conditions, fixing methods, and alignment accuracy required for professional execution in real projects.

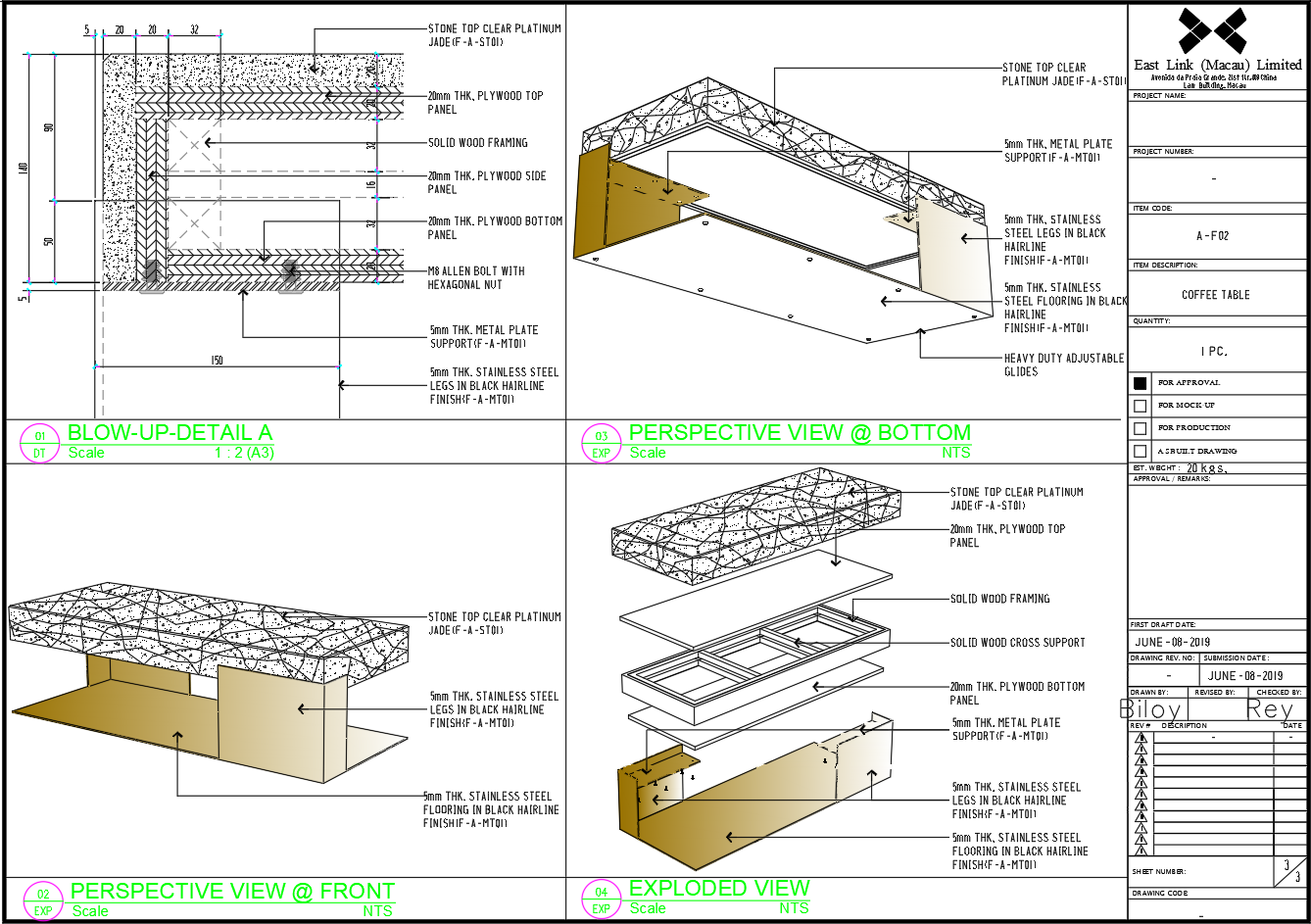

The drawing set also includes front perspective view, bottom perspective view, and a fully detailed exploded view to clearly explain the assembly sequence and construction logic. The base structure is designed with 5mm thick stainless steel legs and 5mm stainless steel flooring, both finished in black hairline texture, supported with heavy duty adjustable glides for leveling. Metal plate supports and Allen bolt connections are clearly indicated for secure installation. This coffee table CAD drawing DWG is ideal for design development, shop drawings, client presentations, and furniture manufacturing documentation, making it a valuable resource for professionals working on contemporary residential and commercial interior projects. For more details, you can refer to the Sofa Set CAD Blocks Designs AutoCAD 2D DWG Drawing.
