AutoCAD Road Design And Typical Road Section with Dimensions
Description

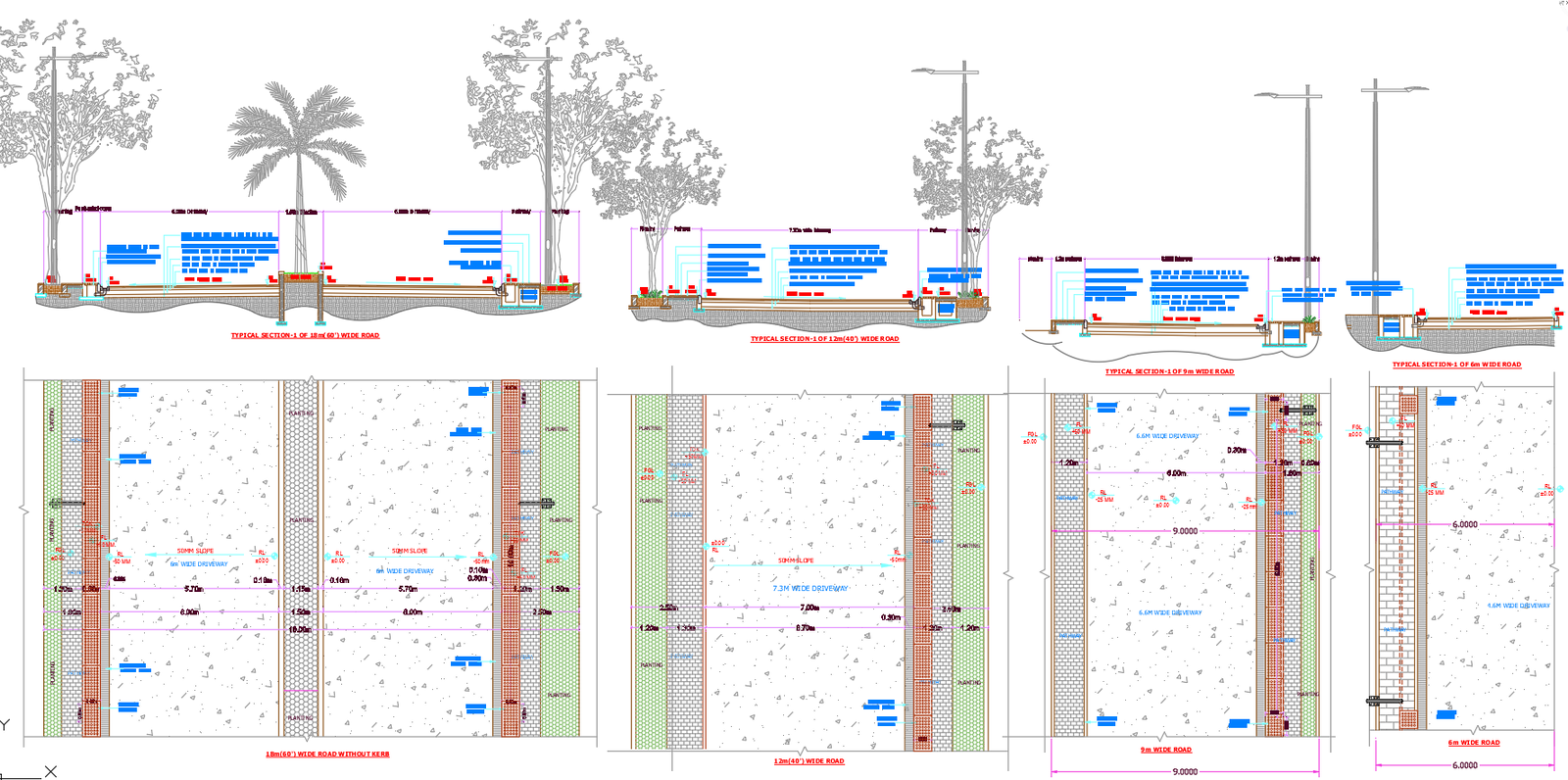

This AutoCAD road design drawing shows complete typical road section details for 6m, 9m, 12m, and 18m wide roads, ideal for urban road construction design and civil engineering projects. The layout includes driveways (4.6m–7.3m), pathways (1.2m each side), and medians (1.5m–2.5m) with planting zones and drainage systems.
It features 6mm bitumen seal coat, 40mm bituminous concrete, 75mm dense bituminous macadam, 150mm wet mix macadam (WMM), and 100mm granular sub-base (GSB). Each section defines Finished Ground Level (FGL), Reduced Level (RL), and Top of Kerb (TOK) at ±0.00 with a 50mm slope for drainage.
The drawing also includes 100mm precast CC kerb, 25mm waterproof plaster, 300mm wide saucer drains, 0.6m × 0.6m manholes at 10m intervals, and electrical chambers.
Perfect for road design, AutoCAD drawing, road cross section, and typical road design applications in urban road construction projects.
