AutoCAD Two Storey House Floor Plan with Room Dimensions Layout
Description

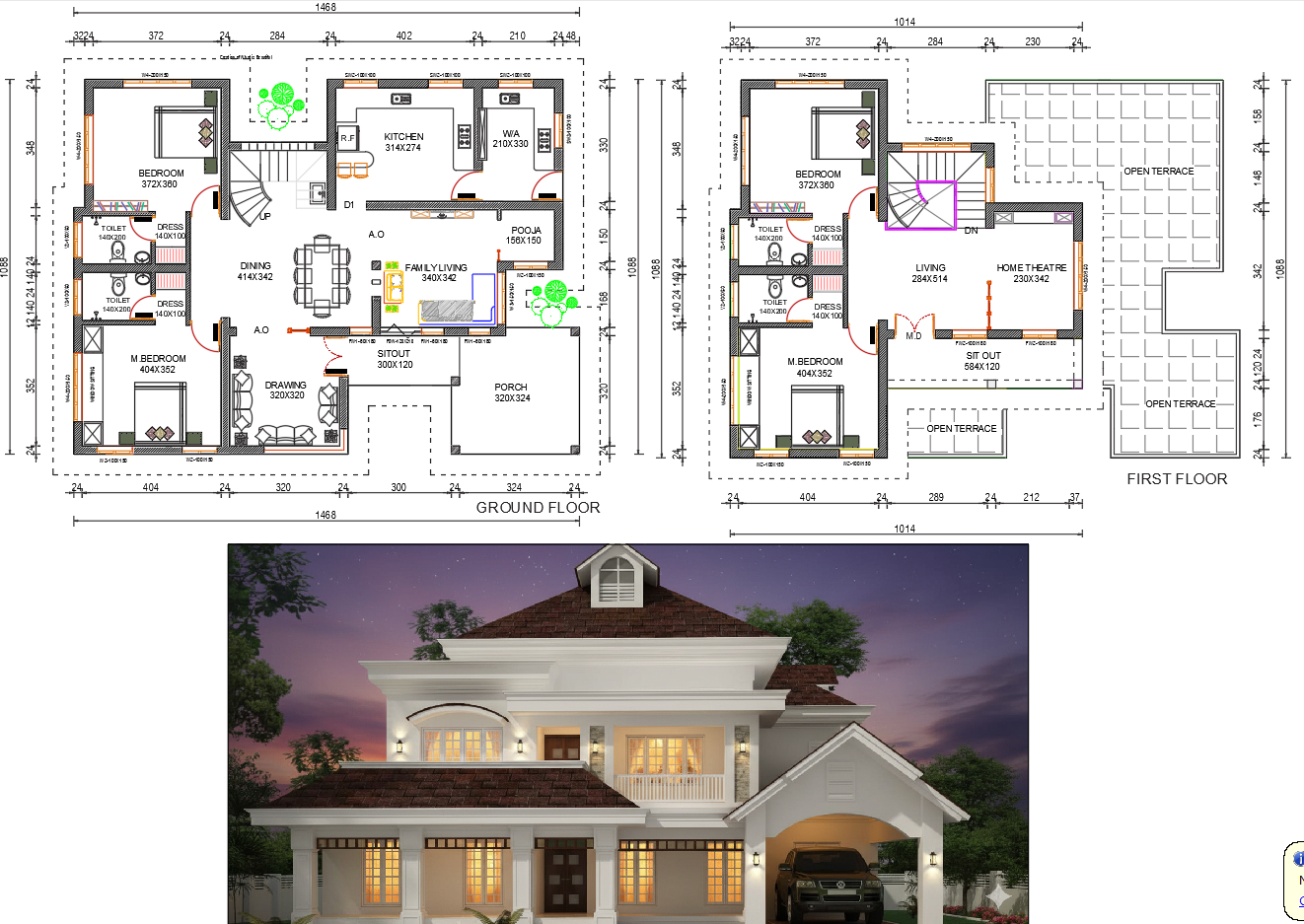

This AutoCAD house floor plan presents a detailed two-storey residential design featuring well-planned functional spaces for modern family living.
The ground floor includes a master bedroom (404×352 cm) with an attached toilet (140×200 cm) and dress area (140×100 cm), a living room (284×514 cm), drawing room (320×320 cm), kitchen (314×274 cm), pooja (156×150 cm), wash area (210×330 cm), and sit-out/porch (320×324 cm).
The first floor consists of two bedrooms (372×360 cm) each with attached toilets (140×200 cm), a home theatre (230×342 cm), and open terrace areas.
Windows (W2 100×150, FW1 60×180, SW2 100×100) and doors (D1 90×210, D2 75×210) are specified for ventilation and light optimization.
Perfect for AutoCAD drawing, road design, typical road design, road cross section, AutoCAD road section drawing, and urban road construction design professionals working on compact residential layouts.
