AutoCAD Bungalow House Floor Plan with Bedrooms and Home Theater

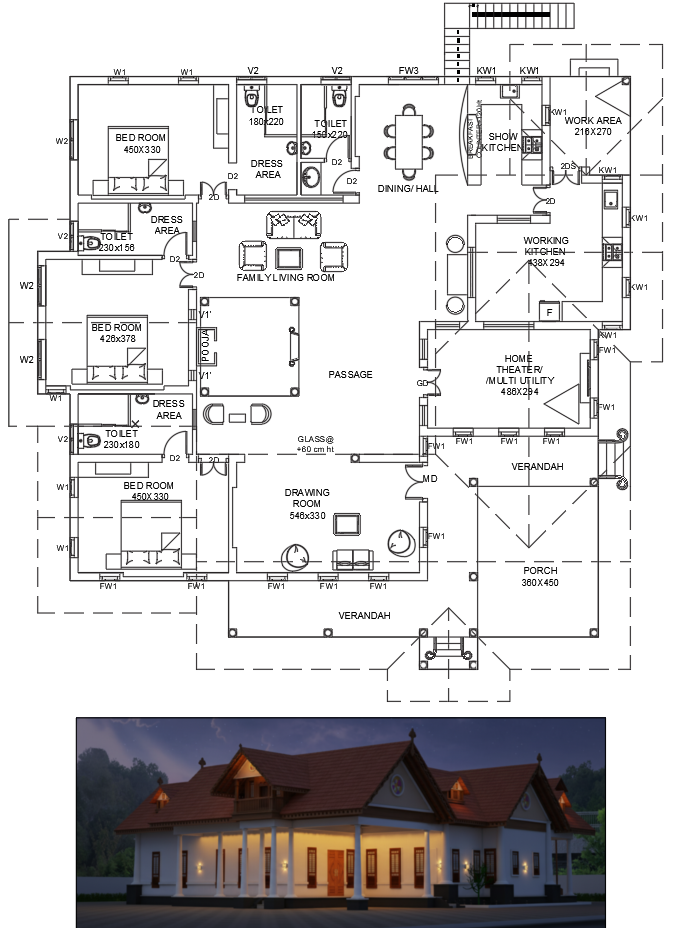

Download this AutoCAD bungalow house plan DWG file, featuring a detailed modern residential layout ideal for architects, civil engineers, and interior designers. The drawing includes a spacious family living room, home theater (486×294 cm), three bedrooms (450×330 cm, 426×378 cm, 450×330 cm) with attached toilets (180×220 cm, 230×180 cm, 230×156 cm), and dedicated dress areas for each suite.

The living area (546×330 cm) connects seamlessly to the porch (360×450 cm) and verandah, enhancing natural light and cross ventilation. The design also includes a working kitchen (438×294 cm), show kitchen, work area (216×270 cm), and pooja space with breakfast counter (+120 cm height).

Perfect for professionals using AutoCAD, 3ds Max, Revit, or SketchUp, this plan offers a ready-to-edit DWG format for modern bungalow and villa projects, fully compatible with BIM workflows.

Get unlimited access to thousands of similar AutoCAD house plans, elevation drawings, and construction details by subscribing to Cadbull Premium — the world’s largest library for CAD drawings.
