AutoCAD Duplex House Plan 3200 Sqft With Verandah and Bedrooms

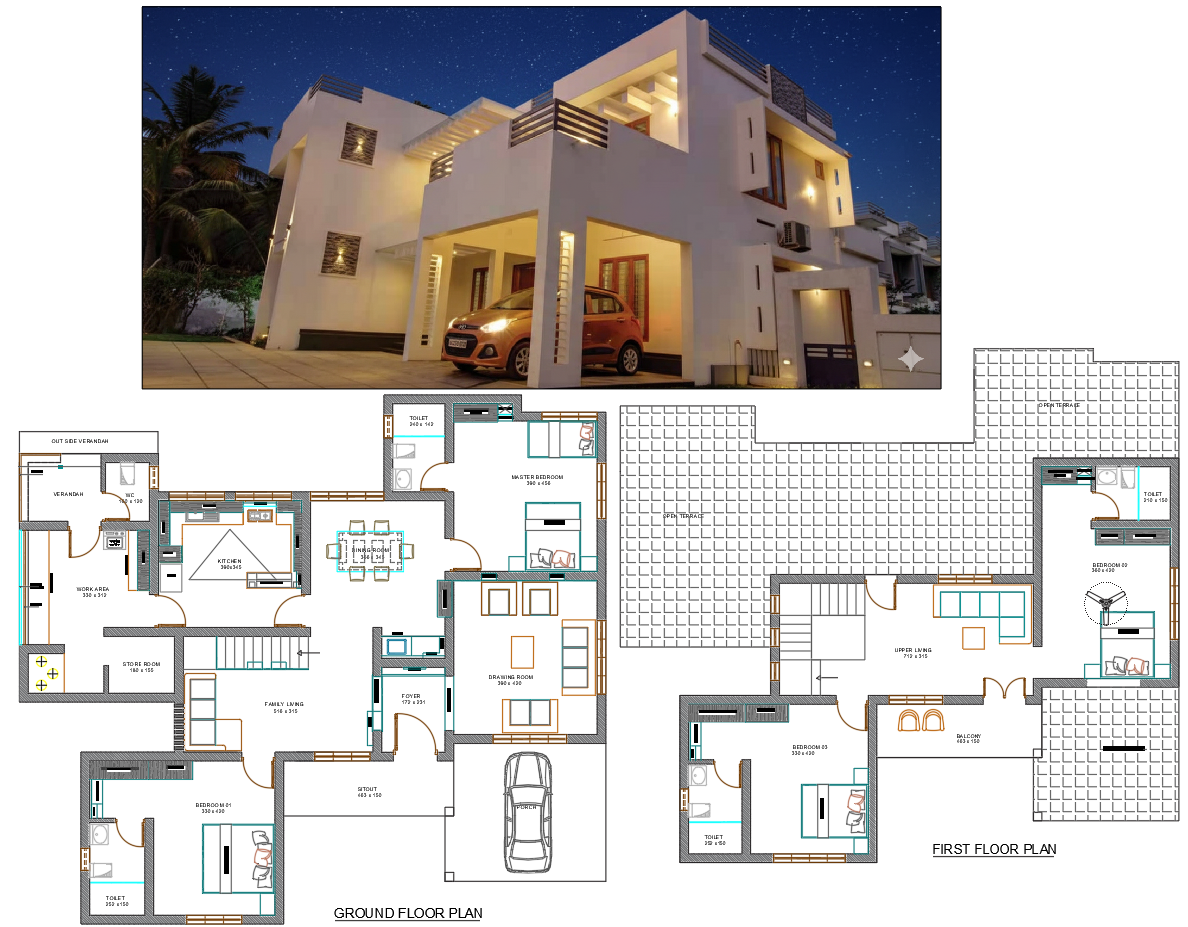

This AutoCAD DWG duplex house plan features a stunning and well-organized layout, covering a total area of 3,200 sq.ft, thoughtfully designed for architects, civil engineers, interior designers, and builders who value aesthetics, comfort, and function in residential design.

Ground Floor Details

The ground floor includes a spacious master bedroom (390×456 cm) with an attached toilet (252×150 cm) and a verandah (160×120 cm) that enhances outdoor comfort and cross ventilation. The living area (516×315 cm) connects beautifully to the drawing room (390×420 cm) and dining space (366×345 cm), creating a seamless flow for family gatherings. A kitchen (390×345 cm) with a work area (330×312 cm) and breakfast table adds functionality and elegance, while a store room (180×155 cm) and sit-out (463×150 cm) complete the design with practical touches.

First Floor Details

The first floor comprises three bedrooms (360×420 cm, 330×420 cm, 330×420 cm), each with attached toilets (210×150 cm, 240×142 cm, 252×150 cm) and thoughtfully designed wardrobes and dressing areas. The upper living area (712×315 cm) serves as a perfect relaxation corner for the family, complemented by a balcony (463×150 cm) and open terrace, providing natural light and ample ventilation.

Design Essence

This layout harmoniously blends luxury with functionality, ensuring aesthetic appeal with every architectural element. Elegant details such as tray ceilings, wardrobe lofts, storage units, and smart circulation flow make this duplex plan an ideal choice for modern villas and residential developments that focus on comfort and sophistication.
