Modern 3000 Sqft Family House Design With Balcony and Terrace

This AutoCAD DWG modern family house plan covers a spacious 3,000 sq.ft layout, designed with architectural balance and functionality in mind. Perfect for architects, civil engineers, interior designers, and builders, this design emphasizes open spaces, natural ventilation, and modern aesthetics suitable for urban and suburban homes.

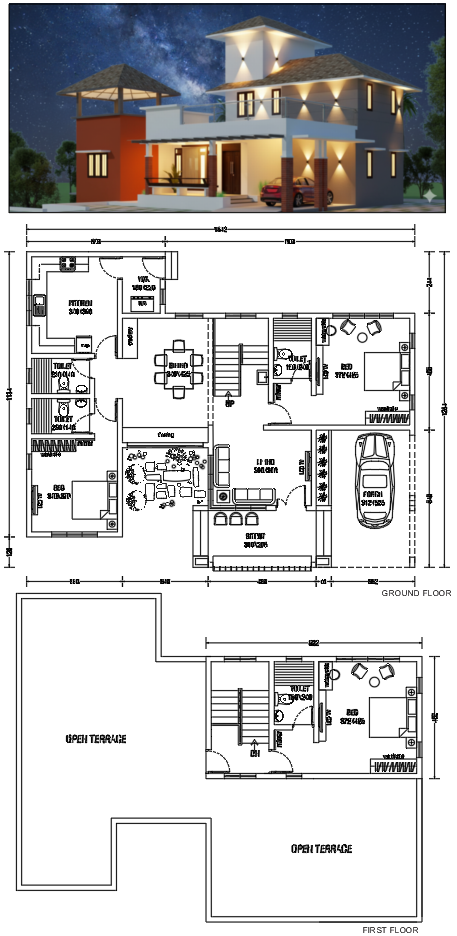

Ground Floor Details

The ground floor includes a large living area, dining space, and a kitchen with an attached work area that ensures efficient workflow. A guest bedroom with an attached toilet, along with a sit-out and porch, enhances convenience and accessibility. The internal layout allows smooth circulation, blending public and private zones perfectly for day-to-day living.

First Floor Details

The first floor features two master bedrooms with attached bathrooms, a family lounge, and a balcony that opens to outdoor views. The open terrace provides ample space for gatherings, leisure, or greenery. The design incorporates natural light and airflow, ensuring a fresh and comfortable indoor atmosphere throughout the house.

Design Essence

This house plan reflects modern architecture with efficient spatial planning, integrating aesthetic simplicity with functional design. Ideal for professionals working with AutoCAD DWG drawings, it can be customized for 3D visualization, detailed planning, or interior development.
