RCC Beam Reinforcement Detailing Drawing With Structural Notes

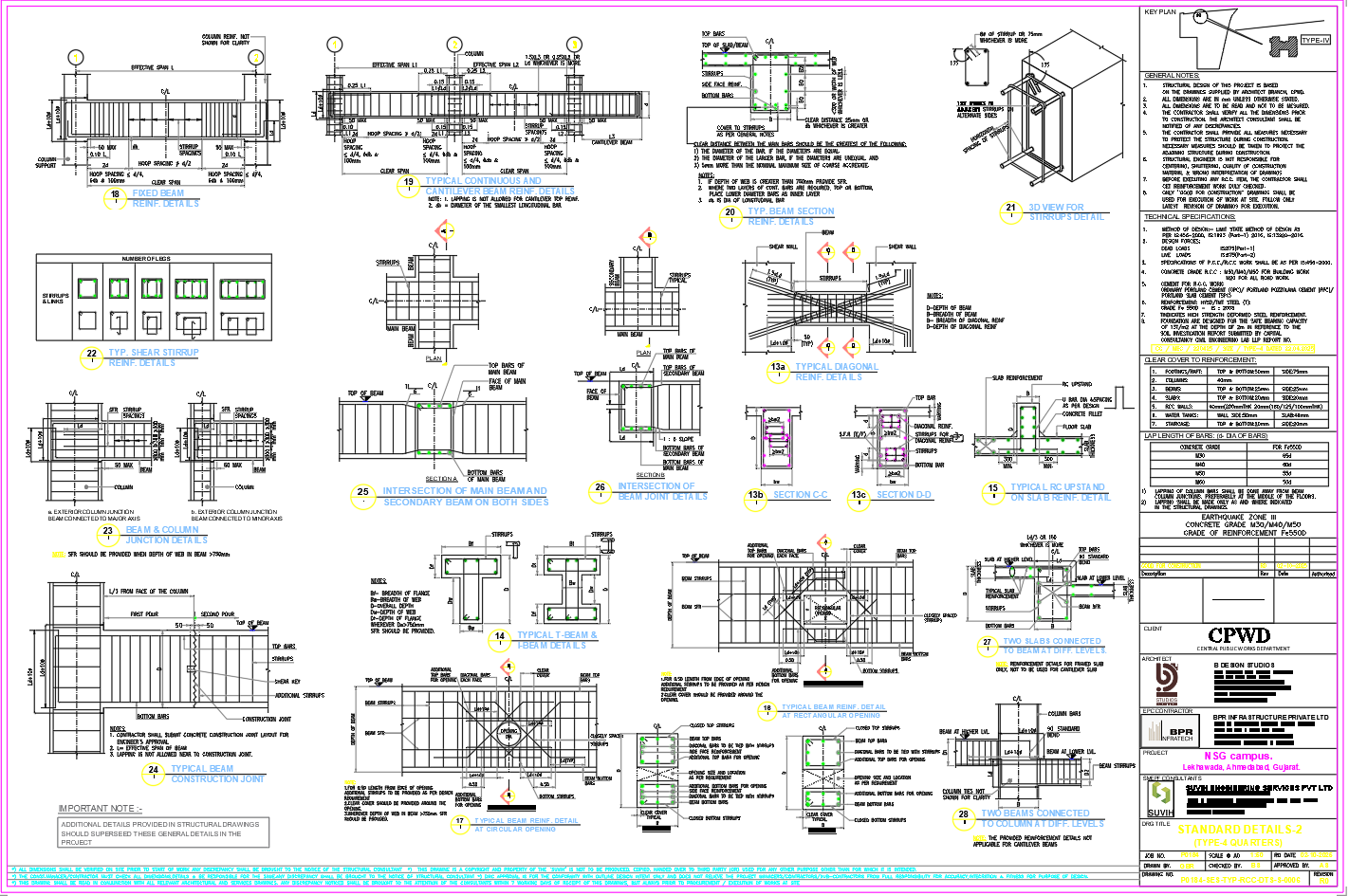

This AutoCAD DWG structural detailing drawing presents comprehensive reinforced concrete beam reinforcement details prepared for seismic Zone 3 construction. The drawing includes typical continuous beam, fixed beam, and cantilever beam reinforcement layouts with clearly marked top bars, bottom bars, and stirrup arrangements. T-beam and I-beam details are provided with flange and web dimensions, ensuring correct load transfer and slab integration. Diagonal reinforcement layouts and shear reinforcement are illustrated with stirrup spacing defined as less than d by 4 6db and 100 mm for critical zones. Beam to column junction details show anchorage lengths, bar bending schedules, and confinement reinforcement for structural safety.

The drawing also includes construction joint details, lap length specifications as Ld plus 10 clear cover, ranging from 25 mm to 75 mm, and RC upstand beam reinforcement around slab openings of rectangular and circular shapes. A 3D stirrup view supports a clear understanding of fabrication and placement. Material specifications are defined using M30, M40, and M50 concrete grades with Fe550D reinforcement steel in accordance with IS 456 2000, IS 1893 Part 1 201,6 and IS 13920 2016. This DWG file is suitable for civil engineers, structural consultants, and architects who require accurate RCC beam detailing for residential and institutional projects following Indian seismic design standards.
