RCC Beam Slab And Column Reinforcement Detailing Drawing DWG

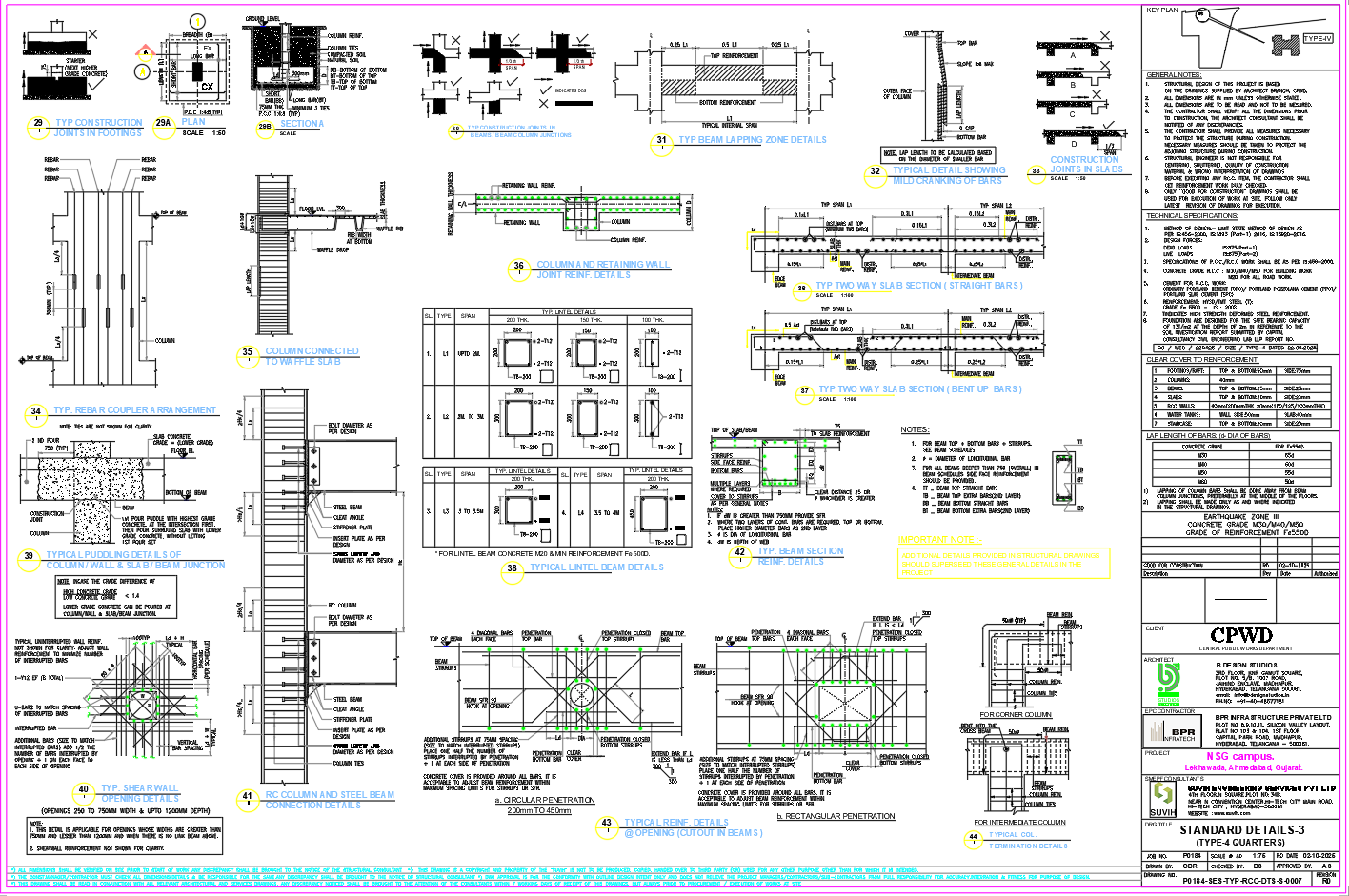

This AutoCAD DWG structural detailing drawing provides complete RCC beam, slab, and column reinforcement details for accurate structural construction. The sheet clearly illustrates beam lapping zone details with development length defined as Ld plus 10, along with main bar distribution bar and stirrup spacing layouts. Typical two-way slab sections are shown with straight bars and bent-up bars for slab thickness ranging from 100 mm to 200 mm, ensuring proper load distribution. Construction joints in slabs, beams, and footings are detailed with reinforcement continuity and anchorage guidance. Lintel beam reinforcement sections and slab joint arrangements are also included to support opening stability and structural integrity.

The drawing further includes circular and rectangular beam opening details with sizes between 200 mm and 450 m,m along with penetration reinforcement layouts. Column connections to waffle slabs, steel beams, and shear walls are clearly marked with coupler arrangements and termination details. Technical specifications mention RCC grades M30, M40, and M50 with Fe550D reinforcement steel designed as per IS 456 2000, IS 1893 201,6 and IS 13920 2016. This DWG file is suitable for civil engineers, structural consultants, and site engineers who require precise RCC reinforcement detailing for residential and institutional construction projects.
