RCC Slab Reinforcement and Shear Wall Detailing And Construction Notes

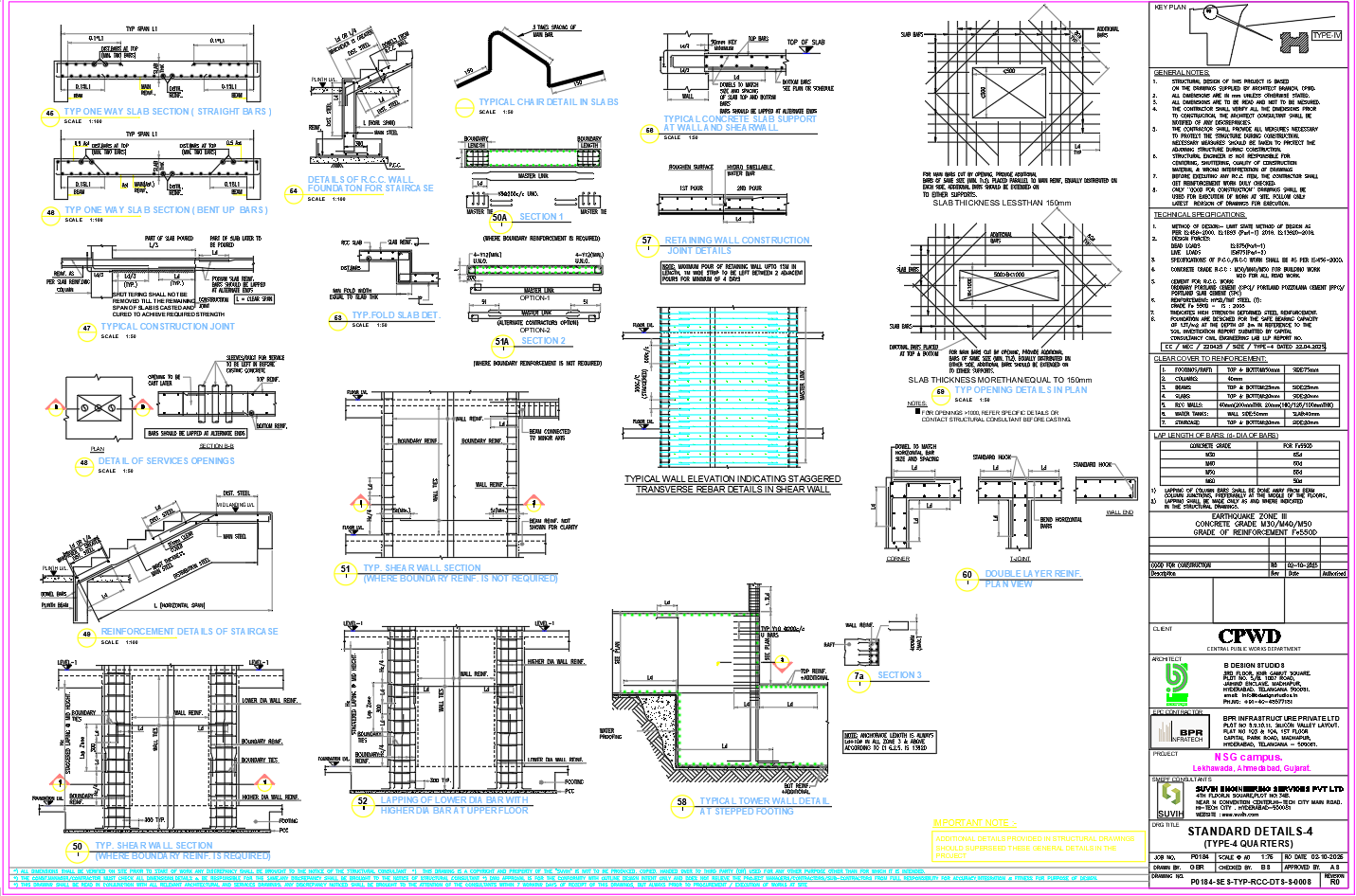

This AutoCAD DWG structural detailing drawing illustrates complete RCC slab, shear wall, and staircase reinforcement details, prepared for CPWD Type-IV Quarters, NSG Campus, Ahmedabad, by SUVIH Engineering Services Pvt. Ltd. under B Design Studios. The file provides one-way and two-way slab reinforcement sections, fold slab details, construction joint drawings, and typical chair details for accurate site implementation.

It includes beam reinforcement, slab opening reinforcement (100mm–1000mm), staircase foundation and landing details, and retaining wall construction joints. Reinforcement specifications follow M30/M40/M50 concrete grades and Fe550D steel under IS 456:2000, IS 1893 (Part-1):2016, and IS 13920:2016. The shear wall boundary reinforcement (Y8@200c/c U-bars), dowel bar details, and typical RCC wall section (50mm cover) ensure stability and earthquake resistance in Zone III.

This detailed structural sheet also highlights typical tower wall and stepped footing sections, construction anchorage (Ld+10), and retaining wall waterproofing specifications, making it an essential reference for civil engineers, architects, and structural consultants handling multi-storey or seismic zone projects.
