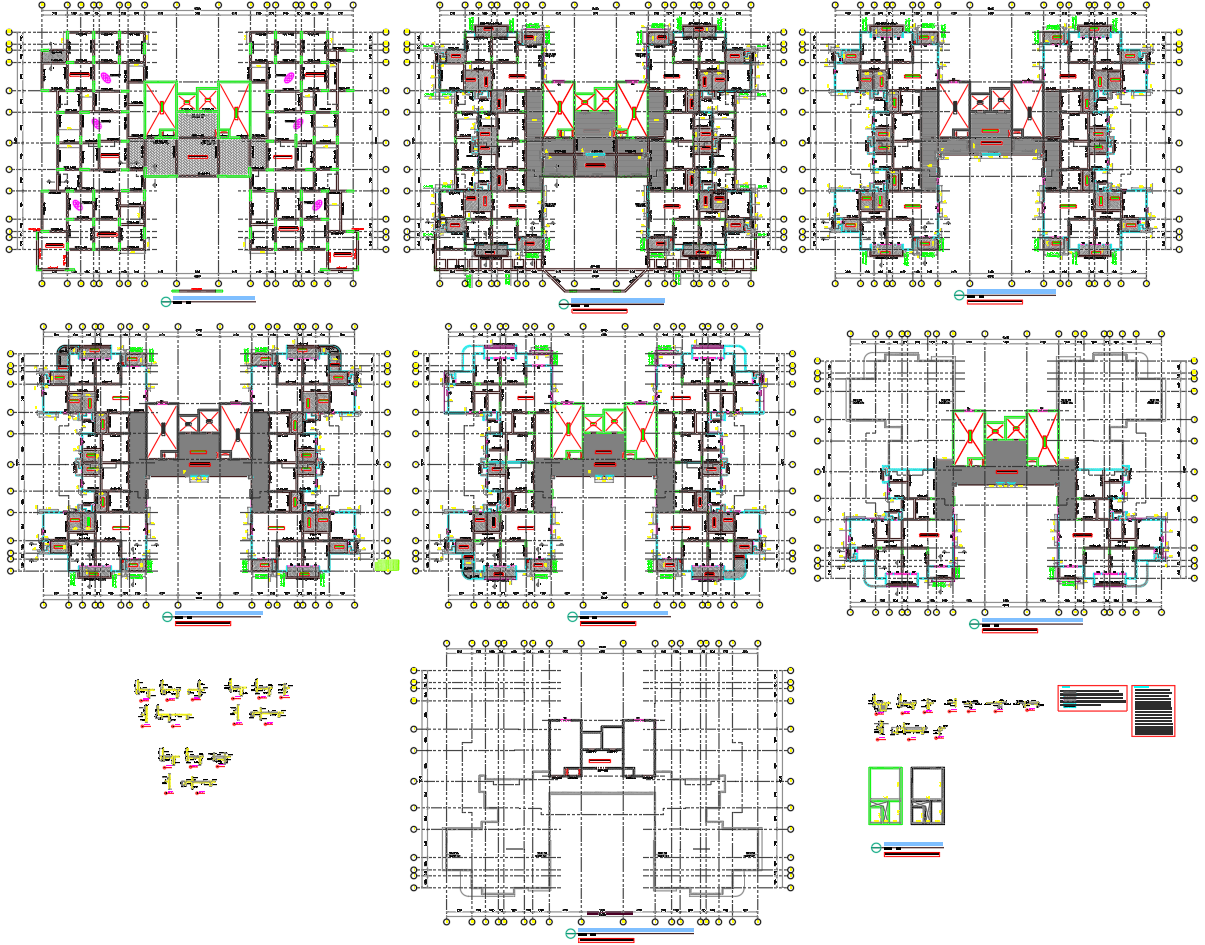

Apartment RCC Structural Layout With Beam Slab and Section Details
Description
This AutoCAD DWG apartment RCC structural plan provides a comprehensive multi-floor beam-and-slab layout for architects, civil engineers, and structural consultants. The drawing covers the plinth, first, second, third, and fourth floor layouts, and the terrace floor layout, with detailed reinforcement and section details (scales 1:75 & 1:25) to ensure structural stability and accuracy.
The beam schedule (B1–B47 and PB1–PB36) includes sizes ranging from 200x550mm to 230x750mm, optimised for vertical load distribution. Slab thicknesses vary between 125mm and 150mm, while parapet wall sections (160mm thick) and plinth beams (230x600mm) strengthen the structure’s integrity. The layout also features sunk slab areas (100–425mm), grade slab concrete (1:4:8 mix), and door/window lintel beams (D1–D2, W1–W3) for comprehensive coverage.
Designed in compliance with IS 456:2000 and IS 875, this DWG drawing ensures precision for multi-storey apartment projects, highlighting beam-to-column connections, wall integration, and reinforcement clarity, making it an essential reference for apartment design execution.
