Cemetery Boundary Wall Restoration RCC Layout Plan With Levels

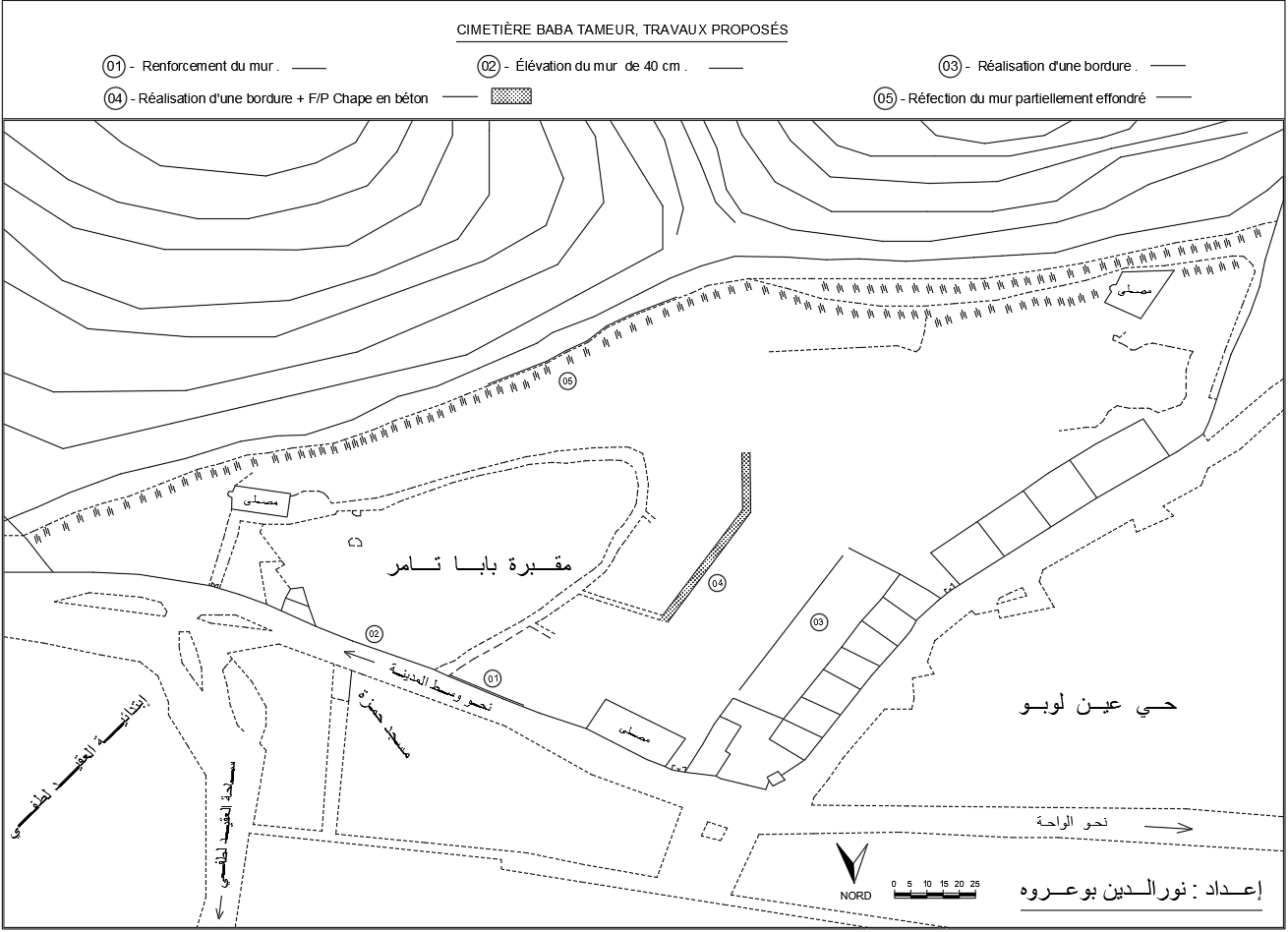

This AutoCAD DWG drawing presents a detailed cemetery boundary wall restoration and RCC layout plan prepared for structural strengthening and site rehabilitation works. The plan illustrates proposed construction interventions around the Baba Tameur Cemetery with clear zoning and alignment of the existing and restored boundary wall. Reinforcement wall sections are designed with an RCC thickness of 40 cm to stabilise partially collapsed masonry. Wall elevation improvements are shown to enhance resistance against soil pressure and long-term environmental exposure. Concrete border construction and edge detailing are clearly marked to protect the boundary line and improve durability.

The layout also includes chape en béton finishing layers with F P concrete treatment for surface protection and uniform load distribution. Restoration areas for partially collapsed wall segments are identified for replacement using RCC structural members. Site contours, road access alignment, boundary edge,s and orientation are clearly represented to support accurate execution. This DWG file is useful for civil engineers, structural consultants, and contractors involved in cemetery restoration, boundary wall repair, and RCC construction planning, requiring precise layout and reinforcement details for on-site implementation.
