Educational Building Fire and Safety Layout Plan With GLP System
Description

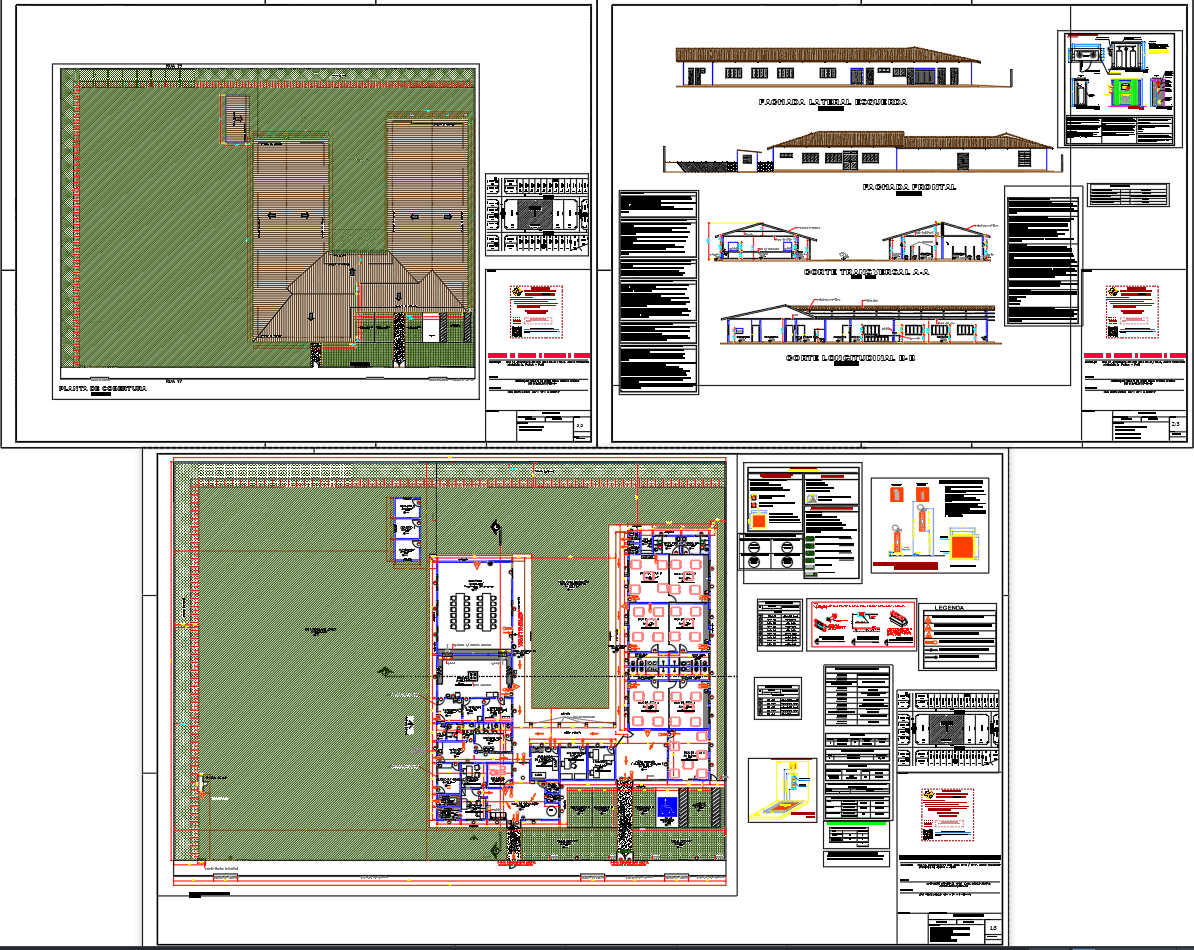

This AutoCAD DWG fire and safety layout drawing represents a complete fire prevention and safety system plan for an educational building project located in Aparecida de Goiânia, Goiás, Brazil, approved under CBMGO standards (Process No. 110487/24).
The plan covers ground and upper floor layouts, site development, GLP (liquefied petroleum gas) storage, and emergency systems, designed for architects, civil engineers, and safety consultants. It includes fire extinguisher placements, emergency lighting, exit signage, and route of escape indications, following NT-08/2022, NT-10/2022, NT-18/2022, NT-20/2022, NT-21/2022, and NT-28/2022 standards.
The educational complex layout consists of seven classrooms (29.77 m² each), refectory (50 m²), administration, pedagogy area, sanitary blocks, kitchen, laundry, storage, pátio coberto (covered courtyard), and parking area for 5 vehicles (including PNE and elderly). The total plot area is 3,462.00 m², with 944.30 m² of constructed area and 20.63% permeable surface ratio.
Additional details include GLP system layout, ventilation specifications, safety signage, and emergency escape routes, ensuring compliance with Brazilian safety codes and construction standards.
