Motel Architectural Layout With GLP Gas and Fire Safety Details

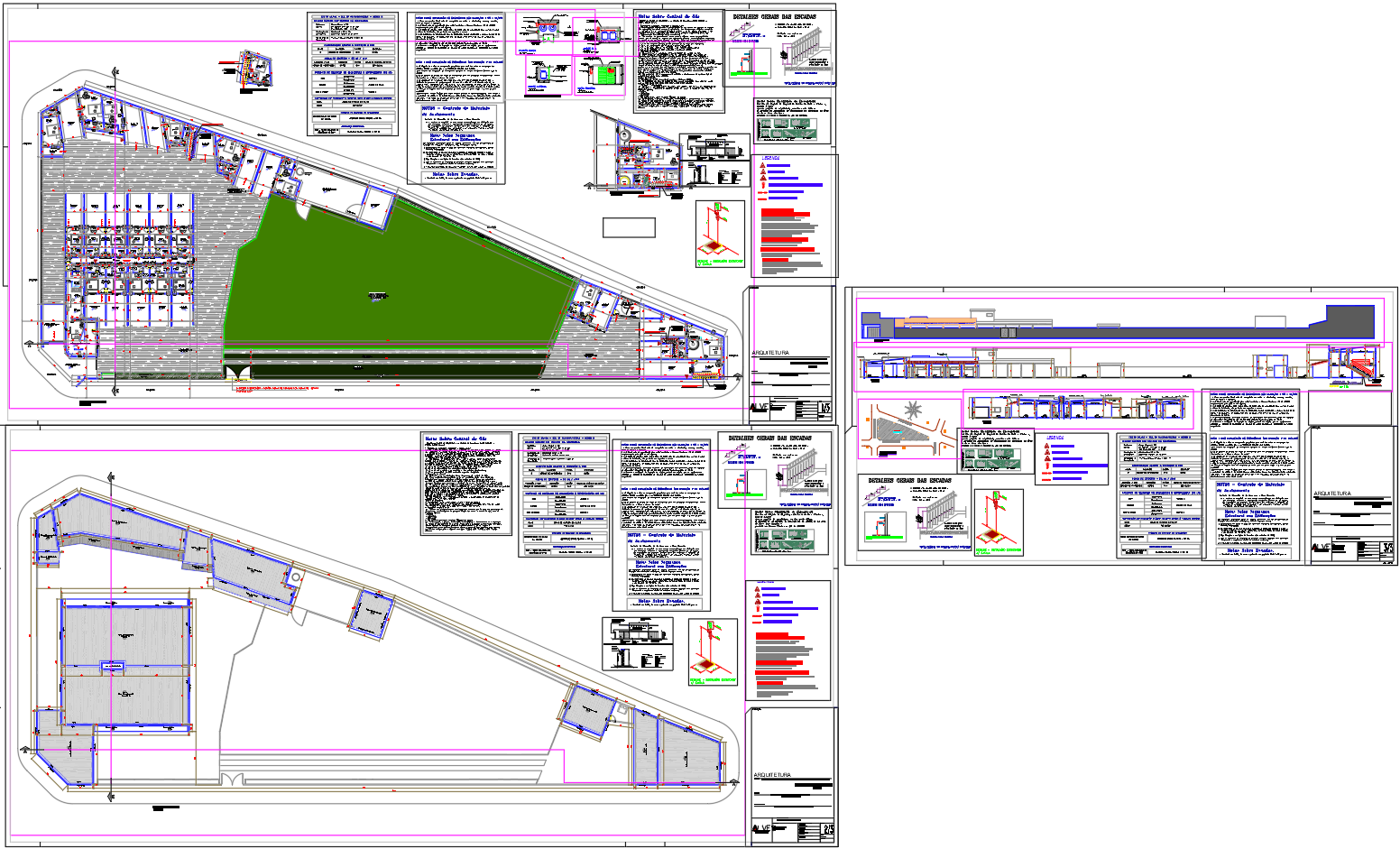

This AutoCAD DWG motel architectural layout presents a comprehensive fire and gas safety plan for a two-storey hospitality structure covering a total area of 1,087.06 m². The drawing, located at Aparecida de Goiânia, Goiás, integrates detailed fire protection, GLP central system, emergency exits, and illumination design in compliance with CBMGO technical standards.

The plan includes suite dimensions (10–38 m²), bathroom and garage allocations, and precise corrimão (railing) and guardrail construction details ensuring anti-slip stairs and fire-retardant finishes. It further defines emergency signage positions, lighting installation points (2.25 m from floor), and extinguisher placements as per Norma Técnica 18, 20, and 21.

Also featured are roofing plans with fibrociment and American tiles, drainage systems, and ventilation requirements for GLP gas centrals. Each section adheres to safety classifications and material control standards under NBR 10898 and CBMGO NT-28, making this file a valuable reference for architects, civil engineers, and builders in designing fire-safe motel structures.
