Health Center Fire Safety And Emergency Evacuation Layout Plan

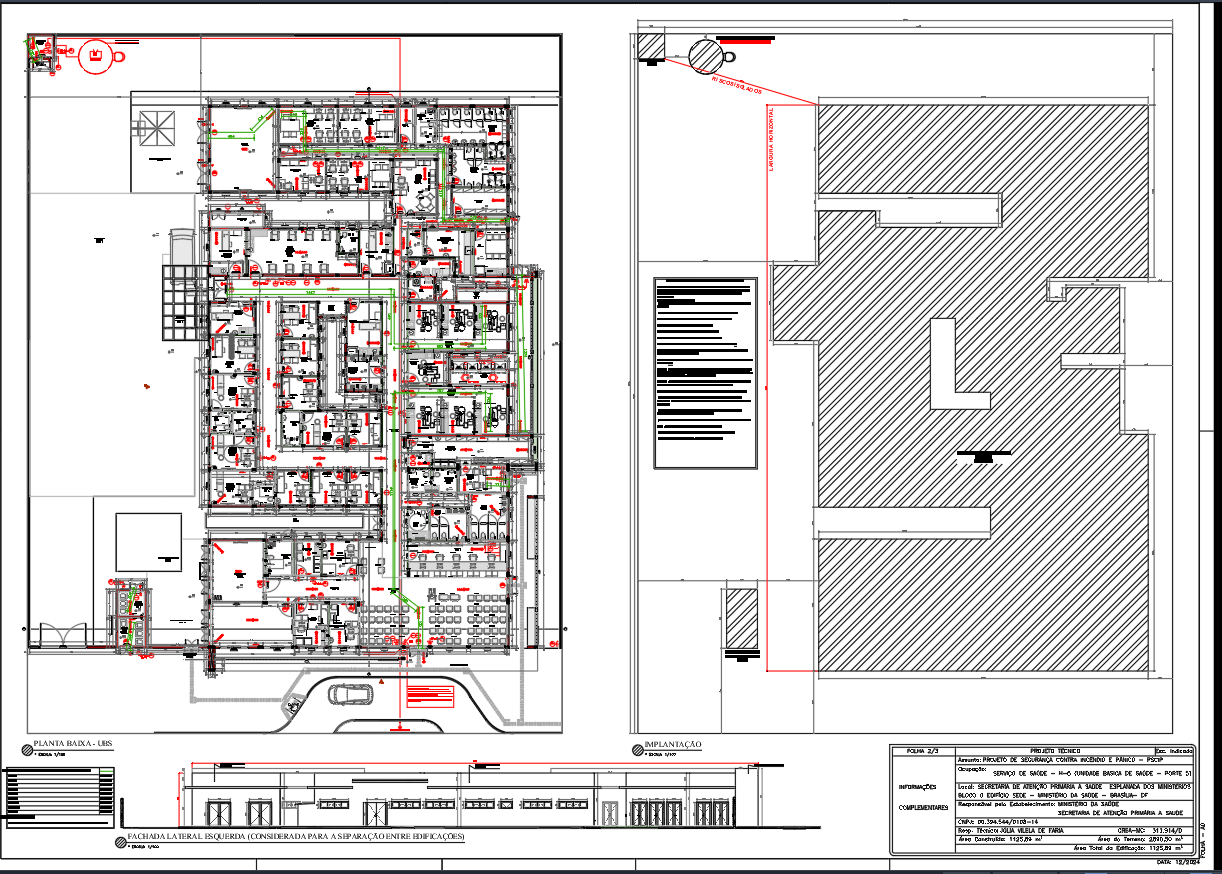

This AutoCAD DWG drawing presents a complete fire safety and emergency evacuation layout plan for a Health Center building with a total built-up area of 1125.89 square meters. The plan clearly illustrates fire protection systems including fire hydrant points emergency lighting alarm call points, exit signage, and defined evacuation routes designed as per CBMMG fire code IT 04 to IT 30 standards. The hydraulic firefighting system includes a 16 cubic meter per hour fire pump with a 5 CV motor, Ø65 mm galvanized piping, and a 25000 liter water tank with 8000 liters reserved exclusively for fire safety use, ensuring continuous system reliability during emergencies.

The layout details safe exit planning with exit widths ranging from 0.9 m to 4.0 m and P60 fire-rated doors positioned across critical functional areas such as consultation rooms, a pharmacy of 21.49 square meters, a dentistry zone of 36.25 square meters, a vaccination room of 11.21 square meters, and an amphitheatre measuring 43.40 square meters. Alarm systems, manual call points installed at 1.3 m height, sonic indicators, and coverage are clearly marked. Electrical and photovoltaic safety guidelines follow NBR 5410 and IT 30 2022 regulations. This DWG file is suitable for architects, civil engineers, planners, and fire safety consultants involved in healthcare facility design and statutory approval documentation.
